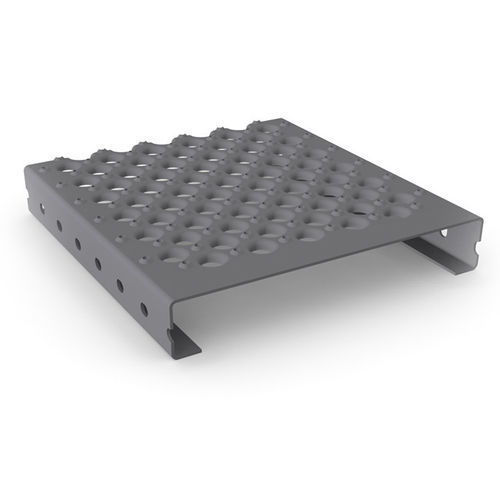

Stainless steel step covering STEPCLAIR N

steelaluminumhot-dip galvanised steel

Product information
This plank features an anti-slip surface with high drainage capacity. It is designed for industrial use: operator platforms, gangways, stair treads and scaffolding planks; it is also suitable for sun shading and automotive applications.

Technical data
Dimensions

• Materials / Sheet thickness / Slip class: Raw / hot-dip galvanised steel (DD11) — 2.0 / 2.5 / 3.0 mm — R13
• Sendzimir galvanised steel (DX51) — 2.0 / 2.5 / 3.0 mm — R13
• Aluminium (AIMg3) — 2.5 / 3.0 mm — R13
• Stainless steel (1.4301) — 2.0 mm — R12
• Preferred widths (mm): 182 / 240 / 298 / 330 / 356 / variable
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Lengths: max. 6,030 mm
• Length divider: 45
• Special sizes or materials on request. Stored sizes according to stock list. All data in mm.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Plastic grommet with recessed hole: Upper fastening component for all Stepclair and Airstep versions.
• BPR Cast metal washer with recessed hole: Upper fastening component for Formstep N and Formstep 06, and all Stepclair and Airstep versions.
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: Cast metal clamp for assembly from below, available in various versions.

Characteristics / technical specifications

• Anti-slip surface with effective drainage.
• Available materials: DD11 raw/hot-dip galvanised steel, DX51 Sendzimir galvanised steel, AIMg3 aluminium, 1.4301 stainless steel.
• Sheet thickness by material: 2.0 / 2.5 / 3.0 mm (stainless steel 2.0 mm; aluminium 2.5 / 3.0 mm).
• Slip resistance: R13 (typical), stainless steel R12.
• Preferred widths: 182 / 240 / 298 / 330 / 356 mm (or variable).
• Preferred heights: 40 / 50 / 75 / 100 mm (other heights on request).
• Maximum length: 6,030 mm. Length divider: 45.
• Applications: operator stations, gangways, stair treads, scaffolding planks, sun shading, automotive engineering.
