Stainless steel step covering DRAINSTEP RH 3

steelhot-dip galvanised steelnon-slip

Product overview

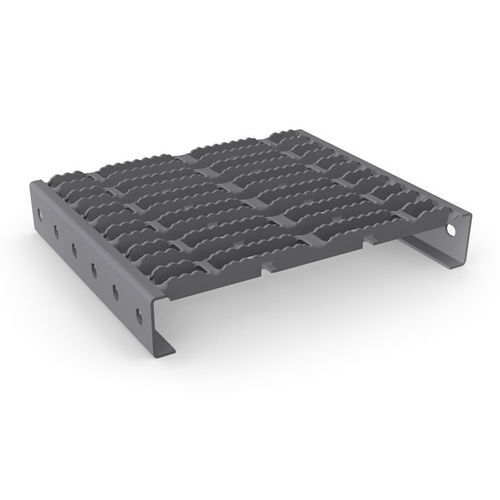

The MEISER sheet metal profile grating Drainstep RH3 is a development based on EN ISO 14122-2 designed to provide increased protection against items falling through (ball ≥ 20 mm) while maintaining high drainage performance. The geometry achieves approximately 70% free cross-section and a maximum opening width of 20 mm. Steeply positioned bars deliver enhanced transverse rigidity suitable for industrial floors, platforms and stair treads.

Technical data

• Materials: raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51)
• Sheet thickness: 2.0 / 2.5 mm
• Slip rating: R11
• Preferred widths: 200 / 300 / 312 / 324 / 333 mm
• Preferred heights: 40–150 mm (other heights on request)
• Maximum length: 8,000 mm
• Length divider: 42.5 mm
• Free cross-section: ≈ 70%
• Maximum opening width: ≤ 20 mm
• All dimensions in mm; special sizes or materials on request

Accessories / Fixings

• BPR Rondelle T03 - cast top part for all Stepbloc and Drainstep shapes with countersunk hole for countersunk screws (DIN 7991).
• BPR-Setztechnik Drainstep RH3 & Stepbloc F - fixing set comprising setting bolt, Rondelle T03 and a countersunk screw with pressed long nut.
• BPR Universal clamp - cast metal clamp for assembly from below, available in various versions.

Applications & references
The Drainstep RH3 is used for industrial walkways, maintenance platforms, stair treads and parking structures where drainage and fall-through protection are required. Documented installations include industrial projects and parking facilities (examples: Audi projects).

Features / specifications

• Standard reference: EN ISO 14122-2
• Development year: 2013
• Protection against fall-through: ball ≥ 20 mm
• High drainage efficiency due to >70% open area
• Excellent transverse rigidity from steep bar positioning and new grid size
• Material and thickness options as listed above
• Slip resistance class: R11
