Aluminum flooring

stainless steelindoorfor outdoor use

Product information

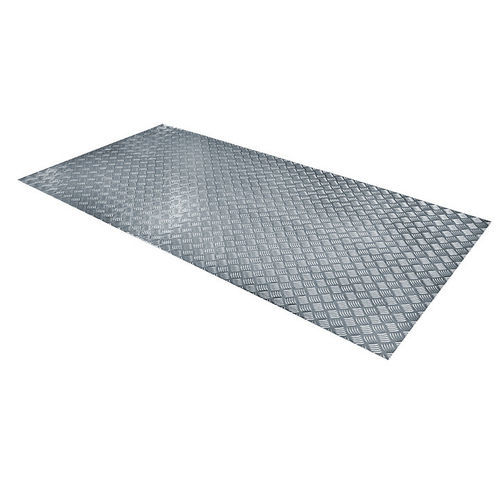

MEISER supplies closed chequer plate as a conventional cover plate for industrial flooring and general industrial applications. The plate can be cut, perforated, lowered, edged and delivered with a surface finish according to customer requirements. Key benefits for use as a floor covering are the low covering height and wide acceptance across application areas. The relatively low load-bearing capacity of standard chequer plate can be compensated by structural reinforcements or by using MEISER plated grating.

Your advantages

• Manufactured individually and made to measure
• Installation plans available on request
• Marking and positioning according to customer specifications
• Preparations for fastening (e.g. countersunk holes) can be provided
• Sheets in standard industry sizes stocked to guarantee short delivery times
• Quality assurance as a standard practice
• Easy installation and assembly
• Good trafficability with pallet trucks and small sliding trolleys

Accessories

• BPR screw connection: special bolt M8 x 20 with washers and self-locking nuts

Technical data
Material
Raw / hot-dip galvanised steel
Aluminium (AlMg³)
Stainless steel (1.4301)

Common material strengths
3/5, 5/7, 6/8, 8/10, 10/12
Other dimensions on request.

Characteristics / technical specifications

• Product type: closed chequer plate for flooring and industrial covers
• Material options: raw / hot-dip galvanised steel; Aluminium (AlMg³); Stainless steel (1.4301)
• Common thicknesses: 3/5, 5/7, 6/8, 8/10, 10/12 (other dimensions on request)
• Processing options: cutting, perforating, lowering, edging, surface finishing
• Fixing preparations: countersunk holes and other fastening preparations available
• Load-bearing: standard plates have relatively low load-bearing capacity; can be increased by structural reinforcements or use of plated grating
• Supply: standard sheet sizes stocked for short lead times
• Accessory example: BPR screw connection (M8 x 20 bolt with washers and self-locking nuts)
