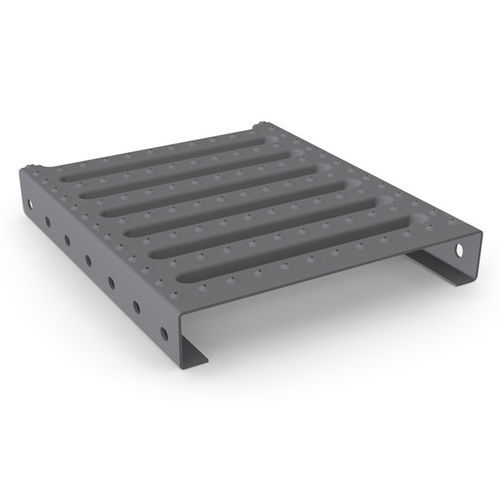

Steel step covering STEPPLUS N

aluminumhot-dip galvanised steelnon-slip

Product information
Stepplus N is a metal flooring panel with an anti-slip surface, designed to provide very high transverse stiffness for high concentrated point loads and effective drainage. It is primarily used in industrial flooring but is also suitable for public/private areas and as wall cladding or architectural elements.

Technical data
Material | Sheet thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 mm | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 mm | R12
Aluminium [AIMg3] | - | -
Stainless steel [1.4301] | 2.0 mm | R12
Preferred widths: 125 / 200 / 250 / 300 mm
Preferred heights: 40 / 50 / 75 / 100 mm (other heights on request)
Max. length: 6,000 mm
Length divider: 50 mm
Special sizes or materials available on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Flange — Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Counterplate — Upper component for all Stepplus versions.
• BPR Rondelle T03 — Cast upper part for Stepbloc and Drainstep shapes with countersunk hole for DIN 7991 countersunk screws.
• BPR Fast fixing — Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp — Cast metal clamp for assembly from below, available in various versions.

Characteristics / Technical specifications

• Anti-slip surface (R12 for the specified steel and stainless steel versions)
• Very high transverse stiffness for high concentrated point loads
• Effective drainage properties
• Suitable for industrial flooring, public and private areas; also for wall cladding and architectural elements
• Typical materials: Raw / hot-dip galvanised steel (DD11), Sendzimir galvanised steel (DX51), Aluminium (AIMg3), Stainless steel (1.4301)
• Sheet thicknesses: 2.0 / 2.5 mm (varies by material); stainless steel 2.0 mm
• Slip class: R12 (for indicated materials)
• Preferred widths (mm): 125 / 200 / 250 / 300
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length: 6,000 mm
• Length divider: 50 mm
• Special sizes and materials available on request
