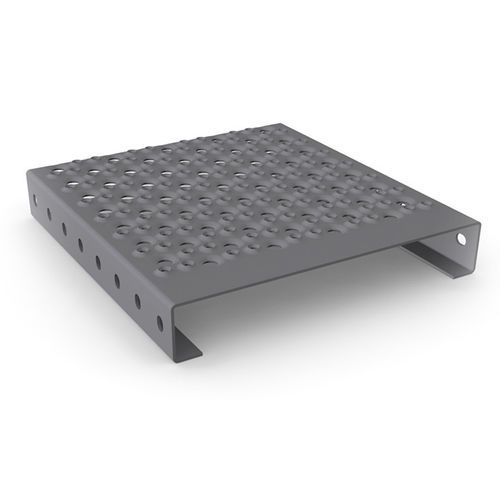

Steel step covering FORMSTEP N

aluminumstainless steelhot-dip galvanised steel

Product description
Small upward-embossed perforations and larger downward-embossed perforations provide stability, self-drainage and anti-slip performance. Suitable for outdoor use and designed for steps, gangways, platforms, machine operator stations and scaffold boards.

Technical data
Material — Sheet thickness — Slip class
Raw / hot-dip galvanised steel [DD11] — 2.0 / 2.5 / 3.0 — R12
Sendzimir galvanised steel [DX51] — 2.0 / 2.5 / 3.0 — R12
Aluminium [AIMg3] — 2.5 / 3.0 — R12
Stainless steel [1.4301] — 2.0 — R11
Preferred widths (mm) — 120 / 180 / 240 / 300 / 360 (variable)
Preferred heights (mm) — 40 / 50 / 75 / 100 (other heights on request)
Max length — 6000 mm
Length divider — 40 mm
Special sizes or materials on request. All dimensions in mm.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Cast metal washer with recessed hole: Upper fixing component for Formstep N and Formstep 06 and all Stepclair and Airstep versions.
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: Cast metal clamp for assembling from below, available in various versions.
• BPR Support clip: Supporting clamp connection preassembled with M8 countersunk head bolt.

References

• Stairway, Speyer
• Witzig and Frank
• Other installed references (images shown on site)

Characteristics / Technical specifications

• Product: Formstep N
• Function: Perforated plank providing stability, drainage and anti-slip surface for industrial and external applications
• Material options: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301)
• Sheet thickness (mm): 2.0 / 2.5 / 3.0 (material dependent); stainless steel 2.0 mm
• Slip class: R12 (R11 for stainless steel)
• Preferred widths (mm): 120, 180, 240, 300, 360 (variable)
• Preferred heights (mm): 40, 50, 75, 100 (other heights on request)
• Maximum length: 6000 mm; length divider 40 mm
• All dimensions in mm; special sizes and materials available on request
