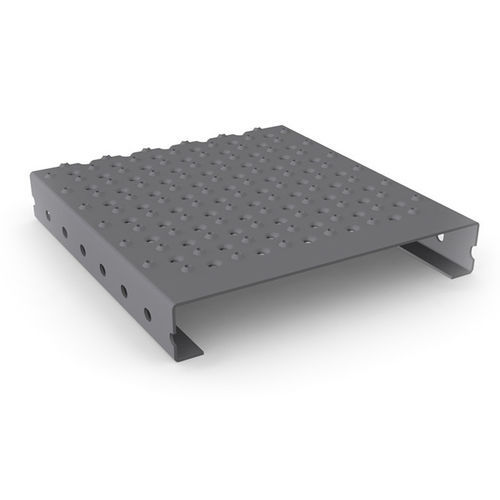

Metal step covering STEPHUIT N

aluminumsteelhot-dip galvanised steel

Product overview
Stephuit N is a perforated profile plank designed for industrial walkways, stairs and public-access areas. Its small perforations and surface profile provide reliable anti-slip properties suited to heavy-duty and public applications.

Technical data
Materials and sheet thicknesses:
Raw / hot-dip galvanised steel [DD11]: 2.0 / 2.5 / 3.0 mm — R13
Sendzimir galvanised steel [DX51]: 2.0 / 2.5 / 3.0 mm — R13
Aluminium [AIMg3]: 2.5 / 3.0 mm — R13
Stainless steel [1.4301]: 2.0 mm — (no R rating)
Preferred widths: 182 / 240 / 298 / 356 mm (variable)
Preferred heights: 40 / 50 / 75 / 100 mm (other heights on request)
Maximum length: 6030 mm
Length pitch (divider): 45 mm
All dimensions in mm. Special sizes or materials available on request.

Accessories / Fixing clips

• BPR Flange — Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing — Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp — Cast metal clamp for assembly from below; available in multiple versions.
• BPR Support clip — Supporting clamp connection, preassembled with M8 countersunk head bolt.

References

• Curative Education Center, Irchenrieth
• Belvedere Kitschenrain, Kirchenthumbach
• Tire storage Denzel, Wien
• Energy mountain Georgswerder, Hamburg
• Pedestrian bridge, Wolkenburg
• Pedestrian bridge, Plattling
• Station Vogelweh, Kaiserslautern
• Bosch Car Park
• Eider Bridge
• Rail station, Cents Luxembourg
• Rail station, Howald Luxembourg
• Serengeti Park

Notes
Special dimensions and materials available on request. Stock dimensions per warehouse programme. Technical drawings available on request. All data in mm.

Technical specifications

• Product name: Stephuit N
• Primary use: Safety flooring for industrial walkways, stairs and public access
• Anti-slip rating: R13 for specified materials (stainless steel: not rated)
• Material options: DD11, DX51, AIMg3, 1.4301
• Sheet thicknesses: DD11/DX51: 2.0 / 2.5 / 3.0 mm; AIMg3: 2.5 / 3.0 mm; 1.4301: 2.0 mm
• Preferred widths: 182 / 240 / 298 / 356 mm
• Preferred heights: 40 / 50 / 75 / 100 mm
• Maximum length: 6030 mm; length pitch: 45 mm
• All measurements in mm; special requests handled on enquiry
