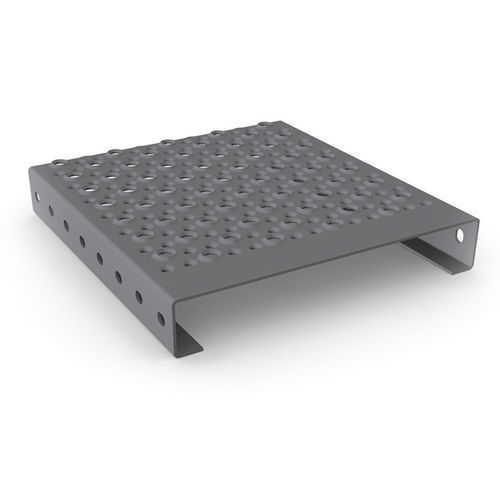

Steel step covering FORMSTEP O4

aluminumstainless steelhot-dip galvanised steel

Product information
This tread plate combines a perforated pattern with directional embossing: large perforations are stamped upwards and the small holes face downwards, enhancing the anti-slip behaviour for industrial flooring and stepped applications.

Technical data
Dimensions
Material: Raw / hot-dip galvanised steel [DD11] — Thickness: 2.0 / 2.5 / 3.0 mm — Slip class: R12
Material: Sendzimir galvanised steel [DX51] — Thickness: 2.0 / 2.5 / 3.0 mm — Slip class: R12
Material: Aluminium [AIMg3] — Thickness: 2.5 / 3.0 mm — Slip class: R12
Material: Stainless steel [1.4301] — Thickness: 2.0 mm — Slip class: R12
Preferred widths (mm): 120 / 180 / 240 / 300 / 360 — variable
Preferred heights (mm): 40 / 50 / 75 / 100 — other heights on request
Maximum length: 6.000 mm
Length divider (mm): 40
Special sizes or materials available on request. Stored sizes according to stock list. All data in mm.

Accessories / Fixing clips

• BPR Flange: Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing: Clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: Cast metal clamp for assembling from below, available in various versions.

References

• Fürstenwall Magdeburg
• Atlantic Sail City

Characteristics / technical specifications

• Product name: Formstep O4
• Anti-slip design: large perforations stamped upwards, small holes facing downwards to improve slip resistance
• Materials available: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301)
• Thickness options (mm): 2.0 / 2.5 / 3.0 (varies by material)
• Slip class: R12
• Preferred widths (mm): 120 / 180 / 240 / 300 / 360 (variable)
• Preferred heights (mm): 40 / 50 / 75 / 100 (other heights on request)
• Maximum length: 6.000 mm; length divider: 40 mm
• Special sizes and materials available on request
