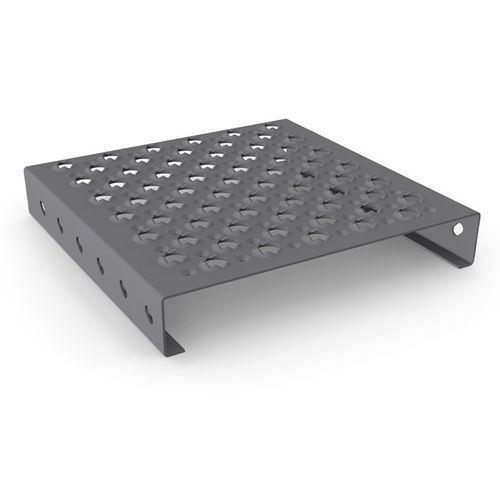

Aluminum step covering TOLCRENEAUX N

steelhot-dip galvanised steelnon-slip

Product information
The advantage of this type is its excellent anti-slip action in all directions, produced by its star-shaped, serrated perforations. The perforations are pressed downward to allow liquid drainage. This makes the plank particularly suitable for outdoor use and for areas where liquids are present.

Technical data
Dimensions
Material | Sheet thickness | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R12
Aluminium [AIMg3] | 2.5 / 3.0 | R12
Stainless steel [AISI 304L] | 2.0 | R12
Preferred widths | 182 / 240 / 298 / 330 / 356 / variable
Preferred heights | 40 / 50 / 75 / 100 / Other heights on request
Lengths | max. 6.030 mm
Length divider | 46 mm
Special sizes or materials on request. Stored sizes according to stock list. All data in mm. *Produced in France.

Accessories / Fixing clips

• BPR Flange — Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Fast fixing — Clamp connection with M8 countersunk head bolt.
• BPR Screw connection — M8 x 20 special bolt with washers and self-locking nuts.
• BPR Universal clamp — Cast metal clamp for assembling from below, available in various versions.

Characteristics / technical specifications

• Model: Tolcreneaux N
• Main use: industrial safety flooring, suitable for outdoor use and areas exposed to liquids
• Perforation type: star-shaped serrated round holes providing multi-directional slip resistance
• Drainage: perforations pressed downward to allow liquids to flow away
• Slip class: R12
• Available materials: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (AISI 304L)
• Sheet thicknesses: DD11 & DX51 — 2.0 / 2.5 / 3.0 mm; AIMg3 — 2.5 / 3.0 mm; AISI 304L — 2.0 mm
• Preferred widths: 182 / 240 / 298 / 330 / 356 mm (variable)
• Preferred heights: 40 / 50 / 75 / 100 mm (other heights on request)
• Maximum length: 6.030 mm; length divider: 46 mm
• Special sizes or materials available on request
• All dimensions in mm. Some items produced in France.
