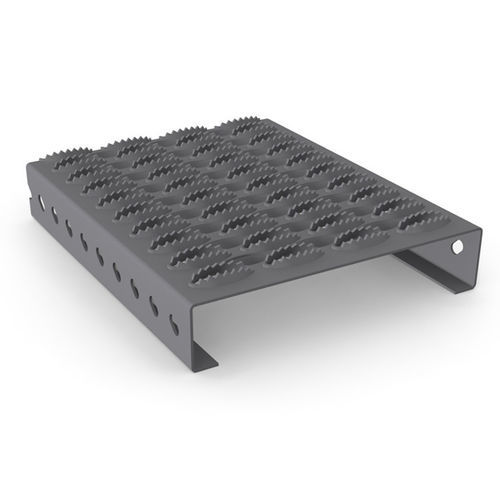

Aluminum step covering TOLPLUS N

stainless steelsteelhot-dip galvanised steel

Product information
Tolplus N is a punched, serrated walkway grating designed to provide pedestrian walking safety and high standing stability. Its pronounced serrations and steep raised profile promote rapid drainage, making Tolplus N suitable for gangways, platforms and safety stairways, including outdoor installations.

Technical data
Dimensions
Material | Sheet thickness | As class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R12
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R12
Aluminium [AIMg3] | 2.5 / 3.0 | R12
Stainless steel [AISI 304L] | 2.0 | R12
Preferred widths (mm) | 124 / 182 / 240 / 298 / 330 / 356 / 414 / 475
Preferred heights (mm) | 40 / 50 / 75 / 100 (other heights on request)
Maximum length | 6,030 mm
Length divider | 30 mm
Special sizes or materials available on request. Stored sizes according to stock list. All data in mm. *Produced in France.

Accessories / Fixing clips

• BPR Flange – Clamp connection with cage nut and M8 countersunk head bolt.
• BPR Plastic Olive – For all Stepbloc versions with recessed hole for countersunk head bolts (DIN 7991).
• BPR Rondelle T03 – Cast top part for all Stepbloc and Drainstep forms with recessed hole for countersunk head screws (DIN 7991).
• BPR Fast fixing – Clamp connection with M8 countersunk head bolt.
• BPR Screw connection – M8 x 20 special bolt with washers and self-locking nuts.
• BPR Cable connection – Various lengths, V2A with plastic sheath and bushings with M8 internal thread.
• BPR-Setztechnik Drainstep RH3 & Stepbloc F – Consists of setting bolt, Rondelle T03 and a countersunk head screw with pressed nut.
• BPR Universal clamp – Cast metal clamp for assembling from below, available in various versions.

Characteristics / technical specifications

• Model: Tolplus N
• Application: pedestrian walking safety, gangways, platforms, safety stairways, outdoor use
• Profile: punched serrations; steep raised profile for effective drainage
• Materials available: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (AISI 304L)
• Sheet thickness options (mm): 2.0 / 2.5 / 3.0 (stainless steel 2.0 mm)
• As class: R12
• Preferred widths (mm): 124, 182, 240, 298, 330, 356, 414, 475
• Preferred heights (mm): 40, 50, 75, 100 (other heights on request)
• Maximum length: 6,030 mm; length divider: 30 mm
• Special sizes or materials on request
• All dimensions in mm
• Produced in France
