Electric griddle MS-G-90

for commercial kitchen

Product overview
MENU SYSTEM griddle plates – built flush into the cooking surface – offer a wide range of uses thanks to their hard chrome finish. Suitable for low-fat grilling of fish and meat, frying vegetables, potatoes, eggs, pancakes and more. Rounded corners and minimal heat radiation enable easy cleaning without aggressive chemical agents. Six sizes are available, accessible from one or both sides, with a smooth or grooved surface.

Benefits

• Temperature monitoring and optimum heat distribution — food is grilled evenly and remains tender
• Single-hand control via rotary knob — temperature selectable from 50 to 250°C
• Hard chrome surface — reduces heat dissipation and helps prevent food from burning on the griddle
• Dual-plate heating technology — maximum efficiency with several large heating bars

MS-G-40
Compact cooking. Space-saving, high-performance griddle for small kitchens or snack bars. Its compact design supports continuous service.
Dimensions: 400 × 600 × 200 mm
Output: 3.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 40 × 60 cm with 1 heating zone — 50 to 250 °C
Control: 1 control unit
Monitoring: Freely adjustable temperature control
Height-Adjustable: Yes
Hobs: 2-plate heating technology
Frying Surface: 340 × 540 mm with rounded corners
Adjustment: Freely adjustable temperature control
Connector: CEE16 or type 15
Weight: 43 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311578

MS-G-50
Slim and practical. Griddle with two heating zones positioned one behind the other which can be controlled independently. Large griddle plate despite narrow front.
Dimensions: 500 × 700 × 200 mm
Output: 6.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 50 × 70 cm with 2 heating zones — 50 to 250 °C
Control: 2 controls
Monitoring: Freely adjustable temperature control
Height-Adjustable: Yes
Hobs: 2-plate heating technology
Frying Surface: 440 × 640 mm with rounded corners
Adjustment: Freely adjustable temperature control
Connector: CEE16 or type 15
Weight: 62 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311579

MS-G-60
Strong and traditional. Flexible powerful griddle for intensive everyday use. Square and practical griddle area. Two heating zones positioned side by side, independently controllable.
Dimensions: 600 × 600 × 200 mm
Output: 6.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 60 × 60 cm with 2 heating zones — 50 to 250 °C
Control: 2 controls
Monitoring: Freely adjustable temperature control
Height-Adjustable: Yes
Hobs: 2-plate heating technology
Frying Surface: 540 × 540 mm with rounded corners
Adjustment: Freely adjustable temperature control
Connector: CEE16 or type 15
Weight: 65 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311580

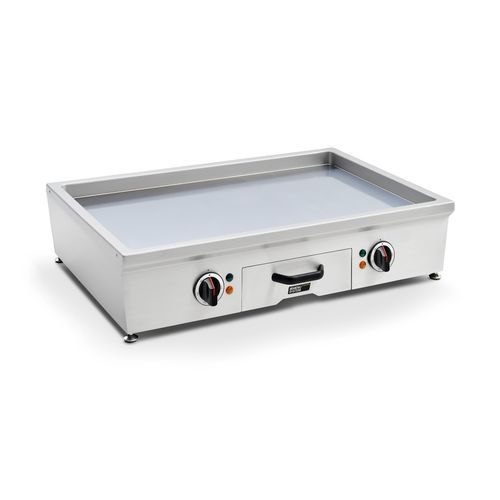

MS-G-90
Wide and powerful. Wide griddle for maximum productivity and large volumes. Ideal for steakhouses, barbecue restaurants and large-scale catering. Two heating zones positioned side by side, independently controllable.
Dimensions: 900 × 600 × 200 mm
Output: 9.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 90 × 60 cm with 2 heating zones — 50 to 250 °C
Control: 2 controls
Monitoring: Freely adjustable temperature control
Height-Adjustable: Yes
Hobs: 2-plate heating technology
Frying Surface: 840 × 540 mm with rounded corners
Adjustment: Freely adjustable temperature control
Connector: CEE 16 or Type 25
Weight: 95 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311581

MS-G-120
The XXL griddle. Super-size griddle for high throughput – ideal for busy steakhouses and barbecue restaurants. Two heating zones positioned side by side, independently controllable. Room for two chefs to work.
Dimensions: 1200 × 600 × 200 mm
Output: 12.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 120 × 60 cm with 2 heating zones — 50 to 250 °C
Control: 2 controls
Monitoring: Freely adjustable temperature control
Height-Adjustable: Yes
Hobs: 2-plate heating technology
Frying Surface: 1140 × 540 mm with rounded corners
Adjustment: Freely adjustable temperature control
Connector: CEE 32
Weight: 148 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311582

Technical specifications

• Finish: Hard chrome surface for reduced heat dissipation and easier cleaning
• Temperature range: 50 to 250 °C (freely adjustable)
• Heating technology: Dual-plate heating with multiple large heating bars for efficiency
• Control: Single- or dual-control units depending on model (1 control for MS-G-40; 2 controls for MS-G-50, MS-G-60, MS-G-90, MS-G-120)
• Height-adjustable: Yes (all models)
• Frying surface: Rounded corners for easy cleaning; size varies by model (examples: 340×540 mm for MS-G-40; up to 1140×540 mm for MS-G-120)
• Power / Output range: 3.0 kW (MS-G-40) up to 12.0 kW (MS-G-120)
• Electrical connector: 3×400 VAC, 50/60 Hz (all models)
• Connector (socket options): CEE16 / type 15 for smaller models; CEE16 or Type 25 / CEE32 for larger models (as specified per model)
• Accessories supplied: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
• Intended applications: Low-fat grilling of fish and meat, vegetables, potatoes, eggs, pancakes; suited for small kitchens up to large-scale catering and steakhouses
