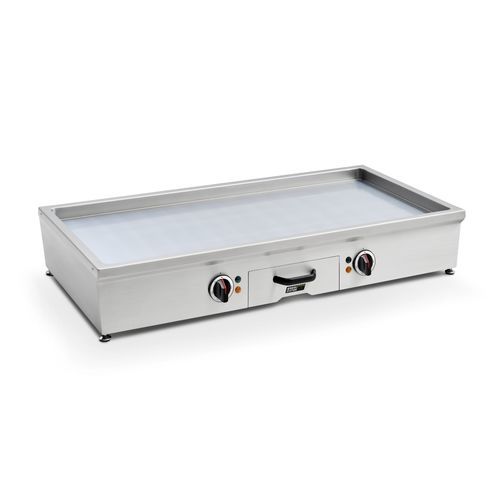

Electric griddle MS-G-120

for commercial kitchen

Description
MENU SYSTEM griddle plates, built flush into the cooking surface, provide versatile low‑fat grilling and frying for professional kitchens. The hard chrome finish reduces heat dissipation and prevents sticking; rounded corners enable easy manual cleaning without aggressive chemicals. Available in six sizes with smooth or grooved surfaces and one or two accessible sides.

Benefits

• Temperature monitoring and optimized heat distribution — food grills evenly and stays tender
• Single‑hand control via rotary knob — temperature selectable from 50 to 250 °C
• Hard chrome surface — reduces heat loss and limits burning on the griddle
• Dual‑plate heating technology — high efficiency using multiple large heating bars

Model: Griddle plate MS-G-40
Compact cooking solution for small kitchens and snack bars; designed for continuous service.
Specifications:
Dimensions: 400 × 600 × 200 mm
Output: 3.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 40 × 60 cm — 1 heating zone
Temperature range: 50 to 250 °C
Control: 1 control unit
Height‑adjustable: Yes
Hobs: 2‑plate heating technology
Frying surface: 340 × 540 mm with rounded corners
Connector (power cord type): CEE16 or type 15
Weight: 43 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311578

Model: Griddle plate MS-G-50
Slim griddle with two heating zones positioned front to back, independently controllable; large effective cooking area despite narrow front.
Specifications:
Dimensions: 500 × 700 × 200 mm
Output: 6.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 50 × 70 cm — 2 heating zones
Temperature range: 50 to 250 °C
Control: 2 controls
Height‑adjustable: Yes
Hobs: 2‑plate heating technology
Frying surface: 440 × 640 mm with rounded corners
Connector (power cord type): CEE16 or type 15
Weight: 62 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311579

Model: Griddle plate MS-G-60
Square, flexible griddle for intensive daily use with two side‑by‑side heating zones controllable independently.
Specifications:
Dimensions: 600 × 600 × 200 mm
Output: 6.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 60 × 60 cm — 2 heating zones
Temperature range: 50 to 250 °C
Control: 2 controls
Height‑adjustable: Yes
Hobs: 2‑plate heating technology
Frying surface: 540 × 540 mm with rounded corners
Connector (power cord type): CEE16 or type 15
Weight: 65 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311580

Model: Griddle plate MS-G-90
Wide griddle for high productivity and large volumes; two side‑by‑side heating zones controllable independently — suited to steakhouses and large catering operations.
Specifications:
Dimensions: 900 × 600 × 200 mm
Output: 9.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 90 × 60 cm — 2 heating zones
Temperature range: 50 to 250 °C
Control: 2 controls
Height‑adjustable: Yes
Hobs: 2‑plate heating technology
Frying surface: 840 × 540 mm with rounded corners
Connector (power cord type): CEE16 or Type 25
Weight: 95 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311581

Model: Griddle plate MS-G-120
XXL griddle for very high throughput; two independent heating zones and capacity for two chefs to work simultaneously.
Specifications:
Dimensions: 1200 × 600 × 200 mm
Output: 12.0 kW
Connector: 3×400 VAC, 50/60 Hz
Heating zone: 120 × 60 cm — 2 heating zones
Temperature range: 50 to 250 °C
Control: 2 controls
Height‑adjustable: Yes
Hobs: 2‑plate heating technology
Frying surface: 1140 × 540 mm with rounded corners
Connector (power cord type): CEE 32
Weight: 148 kg
Accessories: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
Item no.: 311582

Technical specifications

• Series name: MS‑G series (MS‑G‑40, MS‑G‑50, MS‑G‑60, MS‑G‑90, MS‑G‑120)
• Temperature range: 50 to 250 °C
• Surface finish: Hard chrome surface for reduced heat dissipation and improved cooking properties
• Heating technology: Dual‑plate heating with multiple large heating bars for efficiency
• Control: 1 or 2 control units depending on model (single or dual heating zones)
• Power supply: 3×400 VAC, 50/60 Hz
• Output range by model: 3.0 kW (MS‑G‑40), 6.0 kW (MS‑G‑50 / MS‑G‑60), 9.0 kW (MS‑G‑90), 12.0 kW (MS‑G‑120)
• Frying surface dimensions vary by model; rounded corners for easier cleaning
• Height‑adjustable: Yes (all models)
• Accessories included/available: Removable splash guard; Angle spatula; Stainless steel sponge; Teflon plug
• Designed for continuous service, low‑fat grilling, frying and high‑volume use
