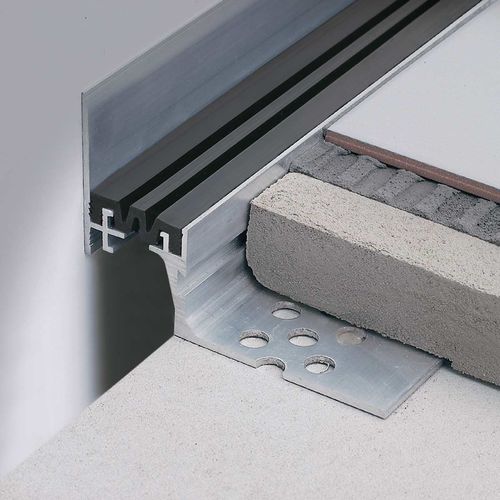

Aluminum load joint JOINTEC GEP

The structural joints of the Jointec GEP series are the GE joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: a lateral anchoring profile in aluminum that can be applied both "to go up" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37 mm) horizontal +9/32"/-1/4" (+ 7 / -6 mm) vertical dilations +5/64"/-5/64" (+ 2 / -2mm). Jointec GEP-A in Natural Aluminum + Resinprene Insert Bridges a 1-9/16’’ / 2’’ (40 / 50mm) gap. Perimeter version of the JOINTEC GM/GML structural joint series with a 1-15/32’’ or 1-27/32’’ (37 or 47mm) - wide rubber insert. Ribbed or smooth versions of the rubber insert are available upon request
