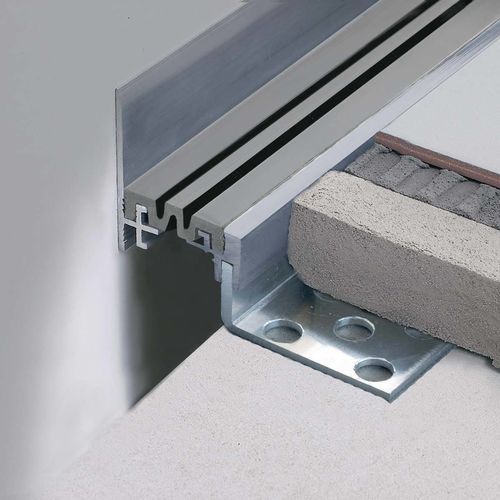

Rubber expansion joint Jointec GMP

aluminumresinfor flooring

Overview
The structural joints of the Jointec GMP are the GM joints transformed into an angular/perimeter version for applications between the floor and the wall. The system uses the multipurpose module JOINTEC P (an aluminium lateral anchoring profile) which can be applied for upward anchoring to the wall and is hidden in the perimeter gap of the floor.

Main characteristics

• Perimeter/angular version of JOINTEC GM structural floor joints designed for floor-to-wall junctions.
• Upward anchoring achieved with the multipurpose JOINTEC P aluminium lateral anchoring profile (hidden in the perimeter gap).
• Available with aluminium profile plus a Resinprene rubber insert (ribbed or smooth insert versions available upon request).
• Designed to bridge joint gaps and allow defined movement: Gates (rubber insert) options include 37 mm horizontal; permitted movement examples shown as ± tolerances in the product text.

Product variants / available items
Table (B1xH (mm) / Article / Color):
B1xH (mm) | Art. | Color
35 | GMP 350 AN23 | Embossed Cement Grey
50 | GMP 500 AN23 | Embossed Cement Grey
75 | GMP 750 AN23 | Embossed Cement Grey
35 | GMP 350 AN51 | Black
50 | GMP 500 AN51 | Black
75 | GMP 750 AN51 | Black

Material and finishing

• Aluminum profile (Natural) with Resinprene insert.
• Finishing options: Natural Aluminium; colors for inserts: Embossed Cement Grey, Black.
• Ribbed or smooth rubber insert available on request.

Applications

• Perimeter joints between floor and wall (upward anchoring).
• Suitable where a hidden lateral anchoring profile is required for finishing and structural continuity.

Downloads / Documentation

• Datasheet and technical documentation available for this product (datasheet referenced as Jointec GMP/GMLP - Datasheet).

Caractéristiques / spécifications techniques

• Brand: Profilitec
• Model / Series: Jointec GMP
• Denomination: angular / perimeter version for upward anchoring of GM joints
• Typical construction: Aluminium lateral anchoring profile (JOINTEC P) + Resinprene rubber insert
• Bridge capacity / typical gap: designed to bridge 40 / 50 mm gaps (variants available)
• Insert width options: 37 mm or 47 mm rubber insert (rubber insert width indicated in series description)
• Available article codes / sizes: GMP 350 AN23 (35 mm), GMP 500 AN23 (50 mm), GMP 750 AN23 (75 mm), GMP 350 AN51 (35 mm black), GMP 500 AN51 (50 mm black), GMP 750 AN51 (75 mm black)
• Insert finish: Embossed Cement Grey, Black; ribbed or smooth options on request
• Typical use: perimeter (floor-to-wall) applications, upward anchoring concealed in perimeter gap
• Technical resources: datasheet and technical drawings available (see product downloads)
