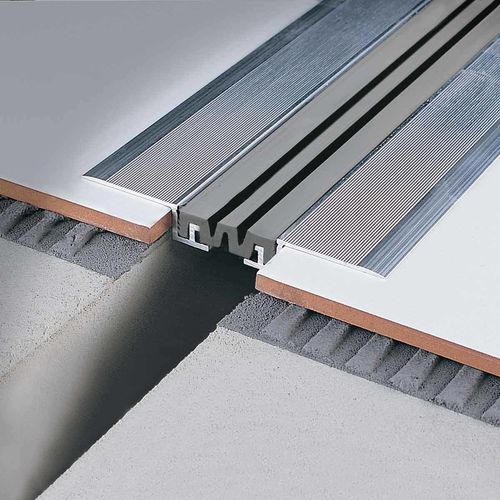

Extruded aluminum expansion joint Jointec GDL

synthetic rubberfor expansion jointssingle gap

Overview
Structural expansion joint with an extruded aluminium supporting profile and a synthetic rubber (Resinprene) insert. Engineered to accommodate vertical, horizontal and transversal movements in large or compound buildings. Installed in cover-on applications on existing surfaces and suitable for vertical installations where required. It connects spaces between adjacent building elements and absorbs cyclic or permanent settlements and movements.

Jointec GDL-A in Natural Aluminum + Resinprene Insert
JOINTEC GDL 500 AN: natural anodized aluminium profile with a 47 mm-wide synthetic rubber insert (Resinprene). Designed to bridge a 50 mm gap. The extruded aluminium profile provides consistent mechanical and chemical resistance; the 47 mm insert delivers the required elasticity. Rubber inserts available in ribbed or smooth finishes on request.

Available variants - Aluminum
B (mm) | Art. | Color
50 | GDL 500 AN23 | Embossed Cement Grey
50 | GDL 500 AN51 | Black

Downloads
Datasheet available: Jointec GD - GDL - Datasheet (PDF).

Technical characteristics / specifications

• Supporting structure: extruded aluminium
• Insert: synthetic rubber (Resinprene)
• Designed movements: vertical, horizontal and transversal (cyclic or permanent)
• Installation: cover-on installation on existing surfaces; suitable for vertical installation
• Standard gap bridged (B): 50 mm
• Rubber insert width: 47 mm
• Insert finishes: ribbed or smooth versions available on request
• Available articles: GDL 500 AN23 (Embossed Cement Grey), GDL 500 AN51 (Black)
