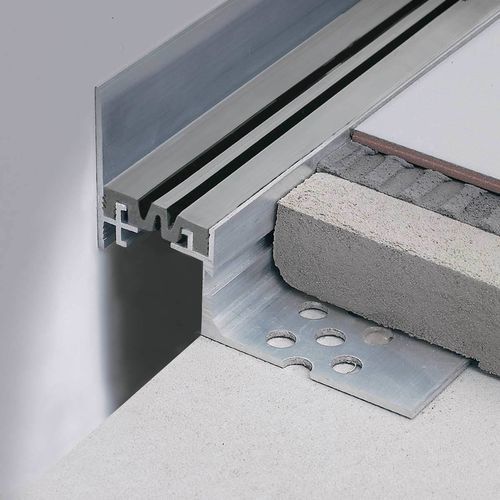

Aluminum expansion joint Jointec GELP

rubberresinfor wall

Product overview
The JOINTEC GELP series are angular perimeter structural joints derived from the GEL family, engineered for floor-to-wall junctions. They are intended for use with the JOINTEC P multipurpose lateral anchoring aluminium profile, which can be positioned upward to anchor to the wall; anchoring remains concealed within the perimeter floor gap.

Key features

• Angular perimeter version for floor-to-wall connections
• Compatible with JOINTEC P for upward (wall) anchoring
• Hidden anchoring in the perimeter floor gap
• Available for 40 mm and 50 mm nominal openings
• Movement capacity: horizontal +7 / -6 mm; vertical +2 / -2 mm
• Rubber / Resinprene insert 47 mm wide; ribbed or smooth finish on request

Materials and finishes

• Profile: Aluminium, natural finish
• Insert: Resinprene (rubber-type)
• Standard finishes: Embossed Cement Grey (A23), Black (A51)

Available variants

• GELP 200 A23 – 20 mm – Embossed Cement Grey
• GELP 500 A23 – 50 mm – Embossed Cement Grey
• GELP 200 A51 – 20 mm – Black
• GELP 500 A51 – 50 mm – Black

Technical specifications

• Nominal opening: 40 mm or 50 mm (variant dependent)
• Horizontal movement capacity: +7 / -6 mm
• Vertical movement capacity: +2 / -2 mm
• Insert width: 47 mm

Documentation
Datasheet and technical drawings available for JOINTEC GEP/GELP family.
