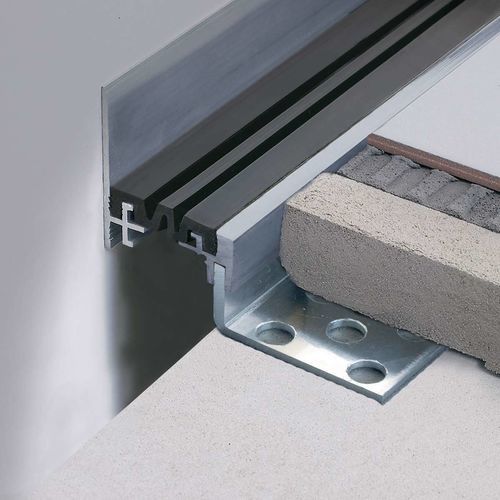

Aluminum expansion joint Jointec GMLP

rubberresinfor wall

Product overview
The JOINTEC GMLP series are angular/perimeter versions of the GML structural joints designed for floor-to-wall connections. They use the multipurpose JOINTEC P aluminium lateral anchoring profile for upward anchoring to the wall; the profile can be concealed in the floor perimeter gap. Movement indications are provided for specified insert widths (see technical specifications).

Key features

• Perimeter (angular) structural joint for floor-to-wall junctions
• Uses JOINTEC P aluminium lateral anchoring profile for upward anchoring, concealable in the perimeter gap
• Insert options: Resinprene/rubber inserts available in 37 mm or 47 mm widths
• Ribbed or smooth rubber insert versions available on request
• Bridges typical structural perimeter gaps; select B1xH variant according to application

Materials and finishes available
Example: JOINTEC GMLP-A in Natural Aluminum with Resinprene insert — suitable for bridging 40 / 50 mm gaps depending on variant. Perimeter version of the JOINTEC GE/GEL structural joint family with 37 mm or 47 mm rubber/resinprene inserts. Ribbed or smooth insert finishes on request.

Table - Aluminum / Natural (summary of available items)
B1xH (mm) | Art. | Color
35 | GMLP 350 A23 | Embossed Cement Grey
50 | GMLP 500 A23 | Embossed Cement Grey
75 | GMLP 750 A23 | Embossed Cement Grey
35 | GMLP 350 A51 | Black
50 | GMLP 500 A51 | Black
75 | GMLP 750 A51 | Black

Downloads
Technical datasheet available for the JOINTEC GMP/GMLP family (manufacturer PDF).

Technical specifications

• Product name: JOINTEC GMLP (angular / perimeter version)
• Anchoring module: JOINTEC P aluminium lateral profile (upward anchoring)
• Material: Aluminium profile + Resinprene / rubber insert options
• Insert widths: 37 mm or 47 mm (rubber/resinprene)
• Available finishes: Natural Aluminum; Embossed Cement Grey (A23); Black (A51)
• Available B1xH sizes: 35 mm, 50 mm, 75 mm
• Example article codes: GMLP 350 A23, GMLP 500 A23, GMLP 750 A23 (Embossed Cement Grey); GMLP 350 A51, GMLP 500 A51, GMLP 750 A51 (Black)
• Insert options: ribbed or smooth on request
• Bridging capability example: bridges 40 / 50 mm gap depending on variant
• Movement (for 47 mm insert): horizontal +7 / -6 mm; vertical +2 / -2 mm — consult datasheet for variant-specific movement capacities
