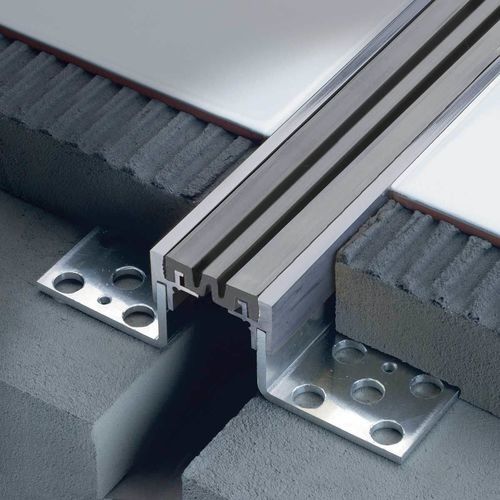

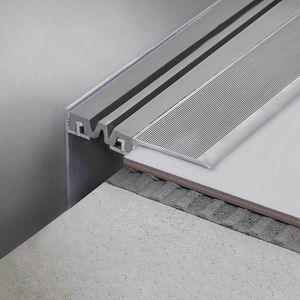

Brass expansion joint Jointec GML

rubberaluminumresin

Product description
Modular structural floor expansion joints with a visible module in brass, aluminium or stainless steel on a lower aluminium module. Designed for 47 mm openings; the system accommodates vertical, horizontal and transverse movements. Movement tolerances: horizontal (+7 / -7) and vertical (+3 / -3). Intended to withstand structural movements in large or compound buildings. Installed at joints between semi-attached parts of the same building or between different spans, the joints connect these intermediate gaps while allowing movements caused by building settlements, cyclic or permanent. Within the modules formed by the structural joints, a further subdivision of the surface with a grid of fraction joints must be provided according to the type of surface traffic.

Materials and finishes

• Stainless Steel 304 / Polished + Resinprene insert
  Profile width: 50 and 60 mm. Aluminium flanges with an upper visible stainless steel module. Central synthetic rubber (Resinprene) insert joins the two sides. Modular system adaptable to various heights and resistant to most diluted chemicals. Ribbed or smooth rubber insert versions available on request.
  Available sizes / articles / colors (Stainless Steel 304 / Polished)
  BxH (mm) | Art. | Color
  35 | GML 350 IL23 | Embossed Cement Grey
  50 | GML 500 IL23 | Embossed Cement Grey
  75 | GML 750 IL23 | Embossed Cement Grey
  35 | GML 350 IL51 | Black
  50 | GML 500 IL51 | Black
  75 | GML 750 IL51 | Black

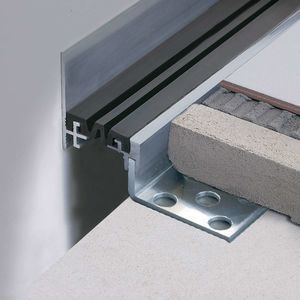

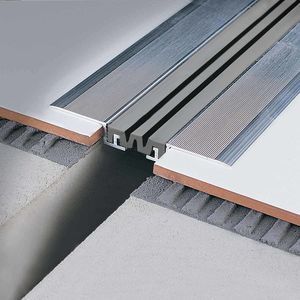

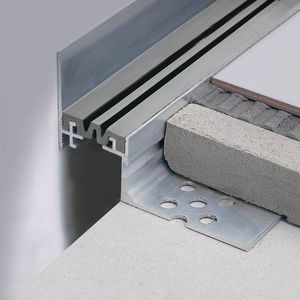

• Aluminum / Natural + Resinprene insert
  Profile width: 50 and 60 mm. Extruded aluminium profile with good resistance to chemical and mechanical stress. Rubber insert widths: 37 mm and 47 mm providing high elasticity. Modular system adaptable to various heights. Ribbed or smooth insert versions available on request.
  Available sizes / articles / colors (Aluminum / Natural)
  BxH (mm) | Art. | Color
  35 | GML 350 AN23 | Embossed Cement Grey
  50 | GML 500 AN23 | Embossed Cement Grey
  75 | GML 750 AN23 | Embossed Cement Grey
  35 | GML 350 AN51 | Black
  50 | GML 500 AN51 | Black
  75 | GML 750 AN51 | Black
• Brass / Natural + Resinprene insert
  Profile width: 50 and 60 mm. Aluminium lower flanges with an upper visible brass module. Central synthetic rubber insert guarantees high elasticity. Modular system adaptable to various heights; suitable for indoor and outdoor use. Ribbed or smooth insert versions available on request.
  Available sizes / articles / colors (Brass / Natural)
  BxH (mm) | Art. | Color
  35 | GML 350 ON23 | Embossed Cement Grey
  50 | GML 500 ON23 | Embossed Cement Grey
  75 | GML 750 ON23 | Embossed Cement Grey
  35 | GML 350 ON51 | Black
  50 | GML 500 ON51 | Black
  75 | GML 750 ON51 | Black

Downloads
Datasheet available for Jointec GM/GML (product datasheet).

Technical characteristics / specifications

• Series / model: Jointec GML
• Function: Structural floor expansion joint for large openings
• Movement accommodation: vertical, horizontal and transverse movements
• Dilatation height: modules allow dilatations of 47 mm
• Movement tolerances: horizontal (+7 / -7) and vertical (+3 / -3)
• Profile widths: 50 mm and 60 mm (modular system adaptable to various heights)
• Visible modules: Brass, Aluminium, Stainless Steel AISI 304 (depending on variant)
• Insert: central synthetic rubber (Resinprene); available widths 37 mm and 47 mm; ribbed or smooth options
• Resistance: high resistance to most diluted chemicals; aluminium variant offers good chemical and mechanical resistance; brass variant suitable for indoor and outdoor use
• Installation location: installed at joints between semi-attached parts or different spans; within modules a further fractionation grid must be provided according to surface traffic
• Finishes / colors: Embossed Cement Grey, Black (depending on material/finish)
• Technical resources: datasheet and technical drawings available
