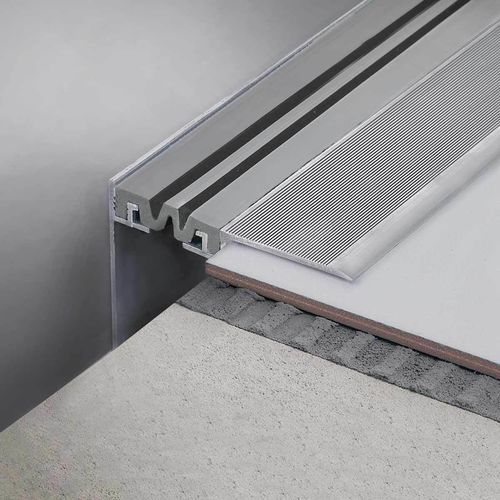

Rubber expansion joint Jointec GDLP

aluminum profilefor wallfor floor

Product overview
The JOINTEC GDLP series are angular (perimeter) structural expansion joints derived from the GDL/GD range, designed for the junction between floor and wall using the multipurpose JOINTEC P aluminium side anchorage profile which can be positioned for wall anchorage or concealed in the floor perimeter gap. Nominal gap for GDLP-A: 53 mm, accommodating specified horizontal and vertical movements.

Key features

• Angular/perimeter version for floor-to-wall junctions.
• Uses JOINTEC P aluminium side anchorage profile, applicable for downward anchoring and concealable within the floor perimeter.
• Designed movement capacities: horizontal (47 mm) +7 / -6 mm; vertical +2 / -2 mm.
• Insert options: Resinprene rubber inserts, 37 mm or 47 mm widths; ribbed or smooth versions available on request.

Materials and finishes available
Jointec GDLP-A in Natural Aluminum + Resinprene Insert
Perimeter variant bridging a 43 / 53 mm gap with a 37 mm or 47 mm-wide Resinprene insert. Ribbed or smooth insert profiles available on request.

Available options (Aluminum / Natural)
B1xH (mm) | Art. | Color
12 | GDLP 500 A23 | Embossed Cement Grey
12 | GDLP 500 A51 | Black

Downloads & technical resources (listed on product page)
Datasheet: EN_Jointec GDP - GDLP - Datasheet (product datasheet available as PDF).

Technical specifications

• Product designation: Jointec GDLP (angular/perimeter version of GDL joints).
• Function: perimeter anchoring between floor and wall using JOINTEC P aluminium anchorage profile.
• Gap bridging: 43 / 53 mm (GDLP-A variant).
• Insert width: 37 mm or 47 mm Resinprene insert; ribbed or smooth versions on request.
• Tolerances / movement capacities: horizontal (47 mm) +7 / -6 mm; vertical +2 / -2 mm.
• Available size example: B1xH 12 mm.
• Article codes / finishes: GDLP 500 A23 (Embossed Cement Grey), GDLP 500 A51 (Black).
• Material: aluminium profile; Resinprene rubber insert.
