Rubber expansion joint JOINTEC GEL

resinaluminum profilefor expansion joints

Product overview
Structural joints with an aluminium load-bearing structure and a synthetic rubber (Resinprene) insert for 48 mm gaps with declared horizontal (+8/-7) and vertical (+3/-3) movements. Designed to accommodate cyclic or permanent structural movements in large buildings or complexes. Installed between semi-attached parts of the same building or between different spans, they connect gaps while allowing vertical and horizontal displacements. Within the modules formed by the structural joints, a further subdivision of the surface with fraction joints must be provided according to expected traffic and use.

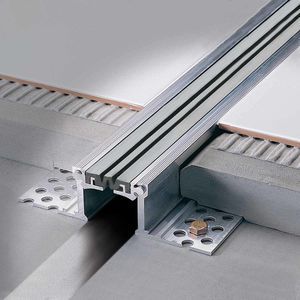

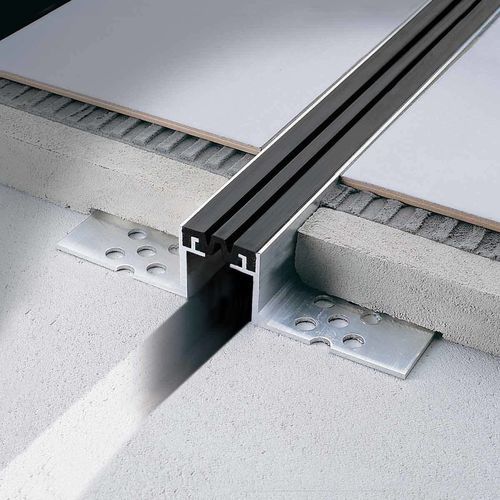

Jointec GEL-A in Natural Aluminum + Resinprene Insert
Profile width: 54 mm; bridges a 48 mm gap. Extruded aluminium profile offering good long-term resistance to chemical and mechanical stress. 47 mm-wide Resinprene rubber insert provides high elasticity to absorb movement. For severe exterior exposure, the brass equivalent (Jointec GM) is recommended.

Available sizes / articles (table)
BxH (mm) | Art. | Color
20 | GEL 200 AN23 | Embossed Cement Grey
50 | GEL 500 AN23 | Embossed Cement Grey
20 | GEL 200 AN51 | Black
50 | GEL 500 AN51 | Black

Downloads
Datasheet: Jointec GE/GEL - Datasheet

Notes

• Install in the free gap between two semi-attached parts of a building or between different spans.
• Suitable for large-scale structural movements (cyclic or permanent).
• Provide additional surface subdivision with fraction joints according to traffic and intended use.

Technical characteristics / specifications

• Material: Extruded aluminium profile with synthetic (Resinprene) rubber insert
• Profile width: 54 mm
• Gap bridged: 48 mm
• Rubber insert width: 47 mm
• Declared movement capability: horizontal +8 / -7 mm; vertical +3 / -3 mm
• Recommended alternative for severe outdoor use: brass profiles (Jointec GM)
• Available references & colours: GEL 200 AN23 (20 mm) - Embossed Cement Grey; GEL 500 AN23 (50 mm) - Embossed Cement Grey; GEL 200 AN51 (20 mm) - Black; GEL 500 AN51 (50 mm) - Black
