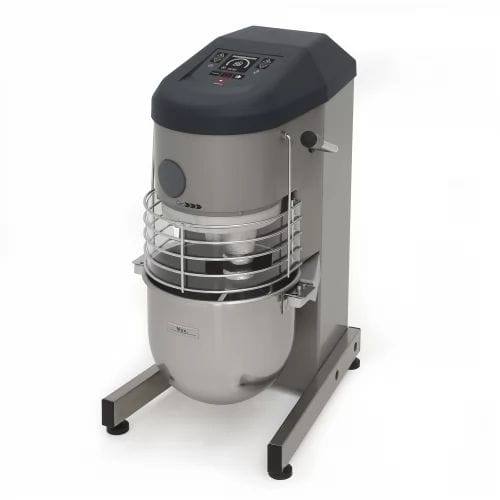

Planetary mixer BP-10

for pastry shopsfor bakeriesbiscuit dough

Overview
Tabletop professional planetary mixer. 10 L stainless-steel bowl. Model C equipped with accessory hub for attachments.

Applications
Designed for preparation of doughs (bread, sponge cake, pizza), egg whites (soufflé, meringue), sauces (mayonnaise) and general mixing tasks in bakery, pastry and food production.

Stainless-steel tools

• Supplied tools: dough hook, beater, balloon whisk.
• Stainless-steel construction; tools dishwasher-safe for easy cleaning.

New keypad with display

• Intuitive interface with clear display.
• Up to 9 customizable programs; 3 preset programmable speeds.
• Electronic timer 0–99 min with continuous operation option.
• Acoustic end-of-cycle alarm and on-screen alarm indicators.

Robustness, reliability and safety

• Robust motor with electronic speed variator; three-phase motor available, connection to single-phase mains possible.
• Lever-operated bowl lift and double micro-switch safety for bowl and guard.
• Reinforced splash/water protection and safety indicator (on BE range equivalence).
• Stainless-steel feet and easy access for maintenance and repair.

Included equipment

• 10 L stainless-steel bowl.
• Spiral dough hook for heavy doughs.
• Beater for soft doughs and pastry mixes.
• Balloon whisk for egg whites and emulsions.

Options

• Accessory hub (model C) for attachments.
• Additional bowls and transport trolleys.
• Base kit with wheels; three-phase versions available.

Technical specifications (table)
Capacity: 10 l
Bowl dimensions: 279 mm x 236 mm
Flour capacity (50% water): 3 kg
Timer: 0' - 99' (continuous operation possible)
Tool speed: 96 - 289 rpm
Planetary speed: 59 - 176 rpm
Total power: 550 / 750 W
External dimensions (W x D x H): 410 x 523 x 688 mm
Net weight: 44 kg
Noise level at 1 m: <75 dB(A)
Background noise: 32 dB(A)
Packaged dimensions: 480 x 560 x 810 mm
Gross weight: 49 kg

Technical features

• Model: BP-10
• Type: Planetary mixer, tabletop
• Safety: manual bowl guard, double microswitches, lever lift
• Materials: stainless-steel bowl and tools
• Control: electronic variator, programmable keypad, timer
• Compliance: UNE-EN 454/2015
• Maintenance: easy to clean and repair
