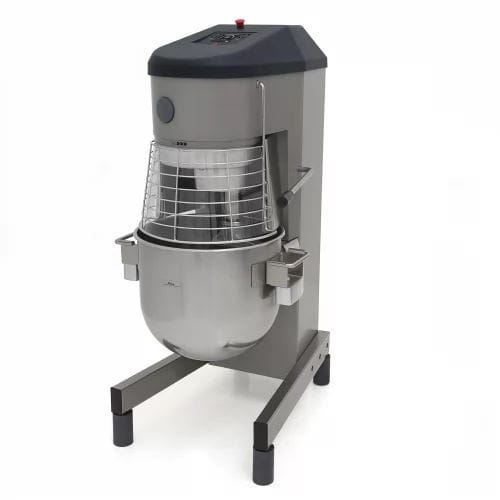

Planetary mixer BP-40

for pastry shopsfor bakeriesbiscuit dough

Summary
Planetary mixer BP-40. Floor model. 40 L bowl. BP-40C: accessory port option. BP-40I: stainless steel column.

Applications
Professional planetary mixer for preparing doughs (bread, cake, etc.), egg whites (soufflé, meringue), sauces (mayonnaise) and mixes (meat mixtures, etc.).

Stainless steel tools

• High mechanical strength.
• Dishwasher-safe for easy cleaning.

New control panel with display

• Highly intuitive interface.
• Customizable up to 9 programs.
• 3 included fixed-speed programs, customizable.
• Clear on-screen information.
• Alarm indications on display.
• Electronic timer 0-99 min with continuous operation option.
• Acoustic end-of-cycle warning.
• Indication of safety devices not engaged.

Durability, reliability and safety

• Robust three-phase motor driven by a reliable electronic inverter; mixer connects to the mains via single-phase supply.
• Emergency stop button.
• Electronic speed variation.
• Equipped with safety guard.
• Bowl lift operated by lever.
• Double safety micro-switch for bowl and guard position.
• Reinforced water protection.
• Stainless steel feet.
• Stainless steel bowl, sturdy and durable.
• Easy maintenance and repair.
• Compliant with UNE-EN 454/2015 standard.

Equipment - Included

• Stainless steel bowl and tools.
• Spiral dough hook for pastry doughs.
• Mixing paddle for sponge cakes, creams, etc.
• Wire whisk for whipping egg whites, meringues, mayonnaise, soft creams, etc.

Equipment - Optional

• Accessory port.
• Stainless steel column.
• 20 L reduction kit.
• Trolley for bowl transport.
• Base kit with wheels for moving the mixer.

Specifications
Bowl capacity | 40 L
Bowl dimensions | 422 mm x 367 mm
Flour capacity (50% water) | 12 kg
Timer (min-max) | 0' - 99'
Tool speed | 85 - 348 rpm
Planetary speed | 45 - 186 rpm
Total power | 1400 W
External dimensions (W x D x H) | 586 mm x 777 mm x 1202 mm
Noise level at 1 m | <75 dB(A)
Background noise | 32 dB(A)

Product sheet / Documents
Product sheet available (download from product page).
