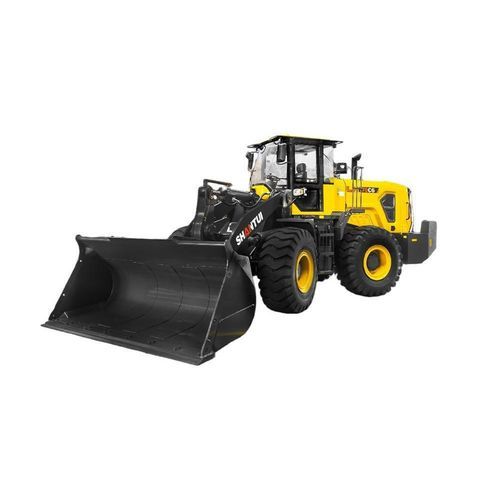

Wheeled loader LH70-C6

dieselfor constructionfor factory

Overview
The LH70-C6 hydrostatic wheel loader is powered by a China Stage IV Weichai engine paired with an electronically controlled variable pump-motor hydrostatic transmission system. It provides full-range continuously variable speed for smooth, jerk-free acceleration and controllable traction. The machine incorporates a load-sensing fixed-variable displacement system and a temperature-controlled electromagnetic clutch fan to improve energy efficiency. With a rated payload of 6.8 t and a standard 4.5 m³ general-purpose bucket, the LH70-C6 balances low fuel consumption with high working-cycle efficiency.

Applications

• Coal preparation plants
• Sand and gravel yards
• Port terminals
• Raw material handling in factories and mines

Technical parameters (table)
Total power (kW): 178
Operating weight (kg): 23300
Bucket capacity (m³): 4.5
External dimensions (mm): 9558*3080*3660
Rated loading capacity (t): 6.8
Maximum dumping height (mm): 3413
Dumping distance (mm): 1368
Subtotal (s): 10.6
Wheelbase (mm): 3550
Maximum speed (km/h): 36
Emissions (Indicated as per international standards): CN stage III

Technical specifications

• Total power: 178 kW
• Operating weight: 23300 kg
• Bucket capacity: 4.5 m³ (standard general-purpose bucket)
• External dimensions (L*W*H): 9558*3080*3660 mm
• Rated loading capacity: 6.8 t (6800 kg)
• Maximum dumping height: 3413 mm
• Dumping distance: 1368 mm
• Subtotal (cycle) time: 10.6 s
• Wheelbase: 3550 mm
• Maximum speed: 36 km/h
• Emissions level: CN stage III
• Powertrain: Weichai engine with electronically controlled variable pump-motor hydrostatic transmission
• Notable technologies: load-sensing fixed-variable displacement system; temperature-controlled electromagnetic clutch fan
