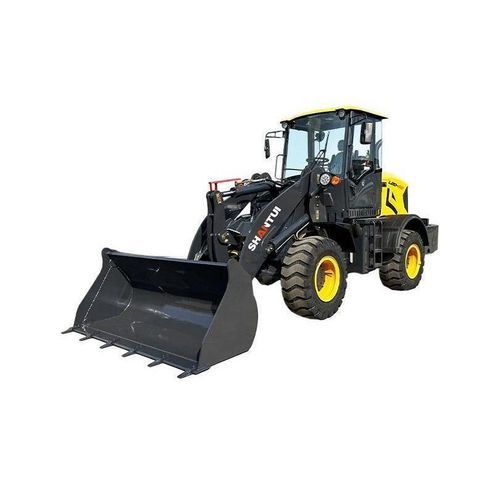

Wheeled loader L20-B3
for constructionfor construction

Wheeled loader - L20-B3 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - for construction / for construction
Wheeled loader - L20-B3 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - for construction / for construction
Add to favorites
Compare this product

Characteristics

Locomotion
wheeled
Other characteristics
for construction
Applications
for construction
Operating weight

5,860 kg
(12,919.1 lb)

Engine power

76 kW
(103.3 hp)

Bucket capacity

1.1 m³
(38.846 ft³)

Payload

2,000 kg
(4,409.25 lb)

Description

Overview
Compact wheel loader designed for loading, material handling and site operations. Suitable for construction sites and industrial applications.

Model
L20-B3

Key features
  • 76 kW engine delivering consistent power
  • 1.1 m³ bucket for medium-volume loading
  • Independent front frame bracing for improved accuracy and structural strength
  • Reinforced independent rear tow frame for heavy-duty towing
  • One-piece gull-wing engine hood for easy service access
  • Integrated hydraulic control system for rapid response and precise operation


Technical specifications
  • Total power (kW): 76
  • Operating weight (kg): 5860
  • Bucket capacity (m³): 1.1
  • External dimensions (mm): 6510×2270×2880
  • Rated loading capacity (t): 2
  • Maximum dumping height (mm): 3300
  • Dumping distance (mm): 1000
  • Wheelbase (mm): 2595
  • Maximum speed (km/h): 18
  • Emissions: China Stage II
