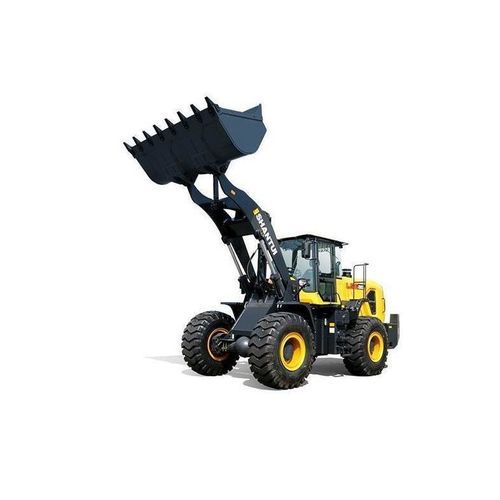

Wheeled loader L56-B5

dieselfor construction

Overview
The L56-B5 wheel loader is an energy-efficient medium loader with a medium-long wheelbase, compliant with CN Stage II emission standards and featuring Shantui’s family-design exterior. Engineered for reliable, high-efficiency material handling, it provides elevated traction and breakout force across combined operating conditions, making it suitable for loading and hauling tasks in medium to heavy-duty applications such as mines, sand yards and quarries.

Key features

• Powertrain: WD10 engine customized by Weichai, matched with Shantui’s electronic-control transmission to form an energy-saving, efficient core powertrain; transmission supports automatic downshifting to improve operational efficiency.
• Cab and operator comfort: Integrated cab offering approximately 15% more interior space, improved sealing and reduced noise levels for better operator endurance.
• Maintenance: Air and diesel filters positioned on the same side as the engine; drive-axle brake calipers externally mounted for simplified inspection and service.
• Durability and adaptability: Reinforced axle box and strengthened front and rear frames provide high load-bearing capacity for earthmoving, coal, ore and aggregate handling.

Parameters
Parameter: L56-B5
Total power (kW): 162
Operating weight (kg): 17,100
Bucket capacity (m³): 3
External dimensions (mm): 8220 × 3026 × 3450
Rated loading capacity (t): 5
Maximum dumping height (mm): 3050
Dumping distance (mm): 1110
Cycle time (s): 9.8
Wheelbase (mm): 3250
Maximum speed (km/h): 39
Emissions: CN Stage II

Technical specifications

• Total power: 162 kW
• Operating weight: 17,100 kg
• Bucket capacity: 3 m³
• External dimensions (L×W×H): 8220 × 3026 × 3450 mm
• Rated loading capacity: 5 t
• Maximum dumping height: 3050 mm
• Dumping distance: 1110 mm
• Cycle time: 9.8 s
• Wheelbase: 3250 mm
• Maximum speed: 39 km/h
• Emissions: CN Stage II
