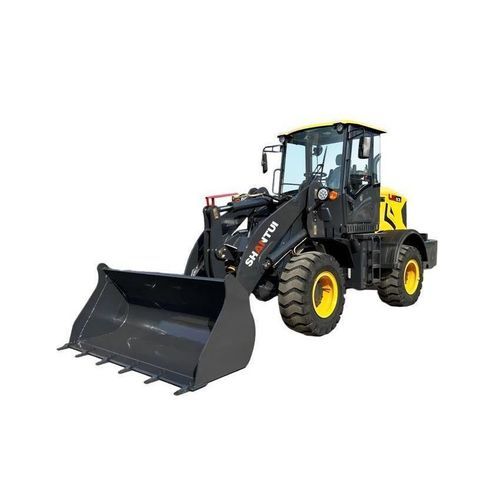

Wheeled loader L16-B3

dieselfor construction

Product
The L16-B3 is a compact wheel loader designed for construction, quarrying and general earthmoving operations. Model L16-B3 delivers balanced power and maneuverability for medium-duty site work.

Key features

• All-new family-design exterior for consistent component layout and service access
• Integrated hydraulic control system for fast response and precise operation
• Independent bracing structure on critical front-frame sections for improved accuracy and strength
• Reinforced independent rear tow frame to support heavy towing tasks
• One-piece, gull-wing wide-opening die-stamped engine hood for high rigidity and easy maintenance access

Technical parameters
Total power (kW) | 65
Operating weight (kg) | 4780
Bucket capacity (m³) | 1
External dimensions (mm) | 6146×2070×2880
Rated loading capacity (t) | 1.8
Maximum dumping height (mm) | 3100
Dumping distance (mm) | 1075
Wheelbase (mm) | 2310
Maximum speed (km/h) | 20
Emissions | China Stage II

Application cases

• Shantui Equipment participating in Libya's post‑war infrastructure reconstruction
• L55-B5 operating in a limestone mining project in Libya
• LE60-X5 electric loader: performance highlights in tropical applications
• Shantui wheel loader working in earthmoving conditions
• Loader used for roadbed construction on the east coast railway project, Malaysia
• Shantui loader deployed in a quarry operation in Chile

Technical specifications

• Total power (kW): 65
• Operating weight (kg): 4780
• Bucket capacity (m³): 1
• External dimensions (mm): 6146×2070×2880
• Rated loading capacity (t): 1.8
• Maximum dumping height (mm): 3100
• Dumping distance (mm): 1075
• Wheelbase (mm): 2310
• Maximum speed (km/h): 20
• Emissions: China Stage II
