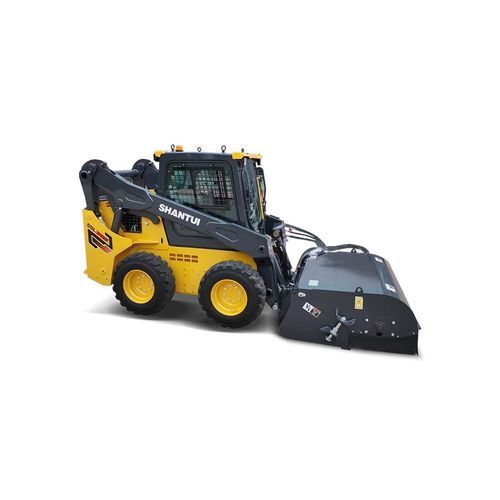

Skid steer loader SSL75V-M

Convenience of maintenance

• Fully open tailgate and split-type hood provide ground-level access to daily maintenance points.
• Tilting cab creates a large inspection space for pumps, motors and valves to simplify servicing.

Driving environment

• Reversible cab with full-glass side door complies with ROPS and FOPS safety requirements.
• Fully trimmed interior reduces noise and dust, provides thermal insulation and wide visibility. Equipped with high-performance seat, HVAC, reversing camera and LED headlights.

Structural components

• Welded integrated high-strength frame for extended service life.
• Vertical lift linkage with optimized geometry for improved breakout and lifting capacity.

Transmission system

• Hydrostatic closed-loop transmission enables stepless speed variation with high output torque and transmission efficiency.
• Compact layout and low center of gravity deliver good stability and agile steering in confined spaces.

Power system

• Equipped with Kubota V3307-TE5A (Euro V) engine for efficient, fuel-saving and quiet operation.
• Independent air-suction temperature-control cooling system for improved heat dissipation.
• Independent fuel-water separator arrangement for easy maintenance.
• 90 L rear-mounted fuel tank supports extended operation and improves machine stability.

Parameters
Operating weight (kg): 4000
Maximum dumping height (mm): 3270
Dumping distance (mm): 936
Maximum breakout force (kN): ≥25.2
Sum of three items (s): ≤10.3
Engine model: Kubota V3307-TE5A
Rated power/speed (kW/rpm): 55.4/2600
Overall dimensions (mm): 3660*1823*2069
Forward speed (km/h): 0-19
Backward speed (km/h): 0-11.9
Wheelbase (mm): 1200
Fuel tank (L): 90
Rated bucket capacity (m³): 0.5
Rated load (t): 1.36

Note
Product specifications are subject to continuous improvement; in case of discrepancy between the listed items and the actual product, the actual product shall prevail.

Technical specifications

• Model: SSL75V-M
• Operating weight: 4000 kg
• Engine model: Kubota V3307-TE5A
• Rated power/speed: 55.4 kW / 2600 rpm
• Rated bucket capacity: 0.5 m³
• Maximum dumping height: 3270 mm
• Dumping distance: 936 mm
• Maximum breakout force: ≥25.2 kN
• Sum of three items (cycle time): ≤10.3 s
• Overall dimensions (L*W*H): 3660*1823*2069 mm
• Forward speed: 0-19 km/h
• Backward speed: 0-11.9 km/h
• Wheelbase: 1200 mm
• Fuel tank capacity: 90 L
• Rated load: 1.36 t
