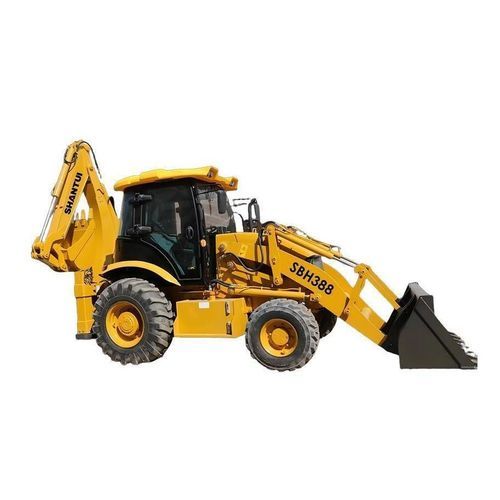

Standard backhoe loader SBH388

Product category

• Backhoe Loader
• Model: SBH388
• Engine: Weichai WP4.1
• Emission: Tier III

Short specifications

• Operating weight: 8200 kg
• Rated load: 2500 kg
• Loading bucket capacity: 1 m3

Parameter details (table)
Parameter: SBH388
Operating weight(kg): 8200
Rated load(kg): 2500
Engine model: Weichai WP4.1
Rated power/speed(kW/rpm): 74/2200
Overall dimensions of machine (mm): 6100*2365*3752
Maximum traveling speed (km/h): 38
Minimum ground clearance (mm): 300
Wheelbase (mm): 2200
Tread (mm): 1785
Fuel tank (L): 125
Operating hydraulic oil tank (L): 125
Loading bucket capacity(m3): 1
Maximum dumping height (mm): 2742
Dumping distance (mm): 925
Digging bucket capacity (m3): 0.3
Maximum digging depth (mm): 4085
Maximum digging radius (mm): 5310

Application cases (examples shown on page)

• Shantui Equipment are Participating in Libya's Post-war Infrastructure Reconstruction
• L55-B5 worked in the limestone mining project in Libya.
• LE60-X5 Electric Loader: Performance Highlights in Tropical Applications
• SHANTUI WHEEL LOADER WORKS IN EARTHMOVING CONDITION
• Loader for roadbed construction - East coast railway project, Malaysia
• Shantui loader for operations in a quarry in Chile

Technical specifications

• Operating weight: 8200 kg
• Rated load: 2500 kg
• Engine model: Weichai WP4.1
• Rated power/speed: 74 kW / 2200 rpm
• Overall dimensions: 6100 x 2365 x 3752 mm
• Maximum traveling speed: 38 km/h
• Minimum ground clearance: 300 mm
• Wheelbase: 2200 mm
• Tread: 1785 mm
• Fuel tank capacity: 125 L
• Operating hydraulic oil tank: 125 L
• Loading bucket capacity: 1 m3
• Maximum dumping height: 2742 mm
• Dumping distance: 925 mm
• Digging bucket capacity: 0.3 m3
• Maximum digging depth: 4085 mm
• Maximum digging radius: 5310 mm
