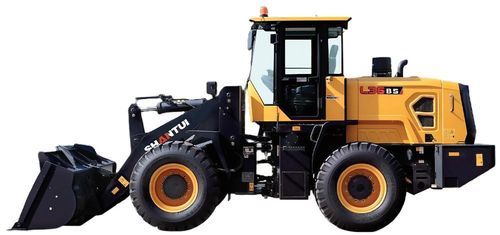

Wheeled loader L36-B5

Tier 2dieselarticulated

Characteristics
Upgraded exterior for the L series featuring Shantui family design. Wide-opening hood, tailgate and side doors provide generous service access. New vibration damping system enhances operator comfort. Front-articulated configuration improves maneuverability in confined workspaces.

Parameters

• Model: L36-B5
• Total power: 92 kW
• Operating weight: 9,700 kg
• Bucket capacity: 1.8 m³
• External dimensions (L×W×H): 7080 × 2454 × 3220 mm
• Rated loading capacity: 3 t
• Maximum dumping height: 3055 mm
• Dumping distance: 910 mm
• Subtotal (time): 9 s
• Wheelbase: 2700 mm
• Maximum speed: 39 km/h
• Emissions standard: CN stage II

Application cases

• Shantui equipment used in Libya's post-war infrastructure reconstruction
• L55-B5 operating in a limestone mining project in Libya
• LE60-X5 electric loader performance in tropical environments
• Shantui wheel loader operating in earthmoving conditions
• Loader used in roadbed construction for an east coast railway project in Malaysia
• Shantui loader operating in a quarry in Chile

Technical specifications

• Model: L36-B5
• Machine type: Medium loader
• Total power: 92 kW
• Operating weight: 9,700 kg
• Bucket capacity: 1.8 m³
• External dimensions (L×W×H): 7080 × 2454 × 3220 mm
• Rated loading capacity: 3 t
• Maximum dumping height: 3055 mm
• Dumping distance: 910 mm
• Cycle time (subtotal): 9 s
• Wheelbase: 2700 mm
• Maximum speed: 39 km/h
• Emissions: CN stage II
