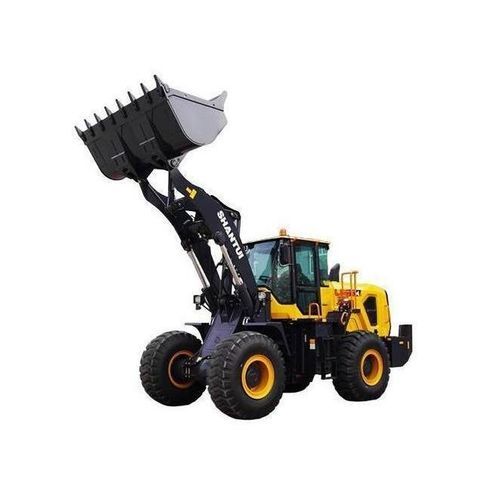

Wheeled loader L58K-M

dieselfor construction

Product overview
The L58K-M wheel loader from Shantui is a heavy-duty machine compliant with Euro V emissions. Designed with a 3,300 mm wheelbase and center-mounted articulation, it delivers balanced load distribution, high traction and reliable performance in medium- to heavy-duty sites such as mines, ports and steel plants.

Fuel-saving
Equipped with the Weichai WP10H engine and Shantui's electronically controlled gearbox, the L58K-M reduces fuel consumption by approximately 8% versus comparable models. The dual-pump confluence hydraulic system contributes additional energy savings of over 5%.

Heavy-duty capability
The machine offers a load-carrying capacity up to 8 tons, a breakout force of 185 kN and an operating weight of 18,700 kg. Reinforced heavy-duty axles, transmission and a strengthened frame make it suitable for continuous, high-load operations.

Reliability
Key structural components (front frame, rear frame, working device) are engineered using finite element analysis for safe operation under heavy loads. The centered wheelbase and large-span articulation ensure even stress distribution. Electrical components meet IP65 protection.

Comfortable operation
The extra-large cab provides about 15% more space, wide visibility and low noise (≤ 60 dB). A flow-amplified steering system ensures easy, responsive control. Standard features include centralized lubrication and a boom shock-absorbing module for improved operator comfort.

Easy maintenance
Grease-filling points are centralized. Large-span articulation and wide-opening side and rear hood doors provide easy access to service items such as oil and air filters, reducing downtime.

Technical parameters

• Model: L58K-M
• Total power: 170 kW @ 2,200 rpm
• Operating weight: 18,700 kg (note: text also references 18.4 t)
• Bucket capacity: 3.0 m³
• External dimensions (L×W×H): 8,730 × 3,066 × 3,450 mm
• Rated loading capacity: 5,500 kg
• Maximum dumping height: 3,450 mm
• Dumping distance: 1,160 mm
• Subtotal (cycle time): 10.2 s
• Wheelbase: 3,300 mm
• Maximum speed: Forward 35 km/h / Reverse 25 km/h
• Emissions: Euro V
• Engine: Weichai WP10H
• Breakout force: 185 kN
• Load-carrying capacity: up to 8 tons
• Cab: extra-large, ~15% more space, noise ≤ 60 dB
• Steering: flow-amplified steering system
• Electrical protection: IP65
