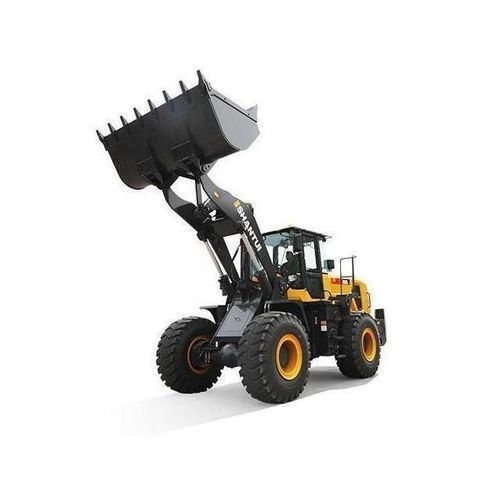

Wheeled loader L55-B5

Tier 2dieselfor construction

Overview
The L55-B5 wheel loader is a medium/heavy-duty model from Shantui developed on the company's latest R&D platform. It combines upgraded powertrain, a new-generation exterior and cabin design, a 3250 mm wheelbase (configurations shown as 3270/3250 mm), and a center-articulated layout for balanced load distribution and consistent machine performance.

Configuration selling point
The machine is fitted with a Weichai WD10 engine (supplied by an affiliated enterprise) matched to a Shantui planetary transmission, forming an energy-efficient core powertrain designed to improve fuel use and operational productivity.

Ease of maintenance and operator comfort

• Integrated cab increases interior space by approximately 15% with improved sealing and noise reduction.
• Air and diesel filters are located on the same side as the engine for simplified servicing.
• Brake calipers on the drive axle are externally mounted to facilitate maintenance.

Adaptability to diverse working conditions
Reinforced axle box and front/rear frames provide high load-bearing capacity, making the L55-B5 suitable for earthmoving, coal, ore and aggregate operations in quarrying, mining and infrastructure projects.

Parameters
Parameter: L55-B5
Total power (kW): 162
Operating weight (kg): 17,600 / 19,000 (*)
Bucket capacity (m³): 3.6 / 4.5 (*)
External dimensions (mm): 8210 x 3020 x 3450 / 8200 x 3020 x 3520 (*)
Rated loading capacity (t): 5
Maximum dumping height (mm): 2910 / 2920 (*)
Dumping distance (mm): 1290 / 1260 (*)
Subtotal (s): 10.5
Wheelbase (mm): 3270 / 3250 (*)
Maximum speed (km/h): fwd 38 / rev 15
Emissions: Tier 2 / Stage II
(*) The left values correspond to the 3.6 m³ bucket configuration; the right values correspond to the 4.5 m³ bucket configuration.

Optional bucket capacities (codes)

• 3.6 m³ bucket — code: 145782B11000
• 4.5 m³ bucket — code: 145782B15000

Application cases (high level)
The L55-B5 is documented in limestone mining and earthmoving/roadbed construction projects, demonstrating suitability across quarry, mining and infrastructure use cases.

Technical specifications

• Model: L55-B5
• Brand: Shantui
• Total power: 162 kW
• Operating weight: 17,600 kg (3.6 m³) / 19,000 kg (4.5 m³)
• Bucket capacity: 3.6 m³ or 4.5 m³ (optional)
• Rated loading capacity: 5 t
• External dimensions: 8210 x 3020 x 3450 mm (3.6 m³) / 8200 x 3020 x 3520 mm (4.5 m³)
• Maximum dumping height: 2910 mm (3.6 m³) / 2920 mm (4.5 m³)
• Dumping distance: 1290 mm (3.6 m³) / 1260 mm (4.5 m³)
• Subtotal (time): 10.5 s
• Wheelbase: 3270 mm (3.6 m³) / 3250 mm (4.5 m³)
• Maximum speed: forward 38 km/h, reverse 15 km/h
• Emissions: Tier 2 / Stage II
• Powertrain: Weichai WD10 engine matched to Shantui planetary transmission
