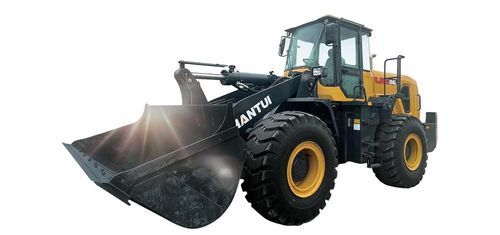

Wheeled loader L56-B6

dieselfor constructionall-terrain

Overview
The L56-B6 wheel loader is an energy-efficient medium loader with a medium-long wheelbase. It complies with CN stage II emissions and features Shantui’s family-design exterior. Designed for reliable, high-efficiency performance, the machine provides strong traction and breakout force under combined operating conditions to ensure effective loading. Typical applications include mines, sand yards and quarries.

Key features

• Powertrain and efficiency: Cummins engine optimally matched with Shantui’s self-developed electronic-control transmission to form an energy-saving, efficient powertrain. The transmission automatically shifts to a lower gear mode during operation to improve productivity.
• Maintenance and operator comfort: Integrated cab increases interior space by approximately 15%, with improved sealing and noise reduction. Air and fuel filters are arranged on the same side as the engine; brake calipers are externally mounted on the drive axle for easier maintenance.
• Adaptability: Reinforced axle housings and strengthened front and rear frames provide high load-bearing capacity, making the machine suitable for earthmoving, coal, ore and aggregate rock operations.
• Applications: Material loading and hauling in medium to heavy-duty contexts such as mines, sand yards and quarries.

Parameters

• Total power (kW): 160
• Operating weight (kg): 17100
• Bucket capacity (m³): 3
• External dimensions (mm): 8220 × 3066 × 3450
• Rated loading capacity (t): 5
• Maximum dumping height (mm): 3050
• Dumping distance (mm): 1110
• Subtotal (s): 9.8
• Wheelbase (mm): 3250
• Maximum speed (km/h): 39
• Emissions: CN stage II

Technical specifications

• Total power (kW): 160
• Operating weight (kg): 17100
• Bucket capacity (m³): 3
• External dimensions (mm): 8220 × 3066 × 3450
• Rated loading capacity (t): 5
• Maximum dumping height (mm): 3050
• Dumping distance (mm): 1110
• Subtotal (s): 9.8
• Wheelbase (mm): 3250
• Maximum speed (km/h): 39
• Emissions: CN stage II
