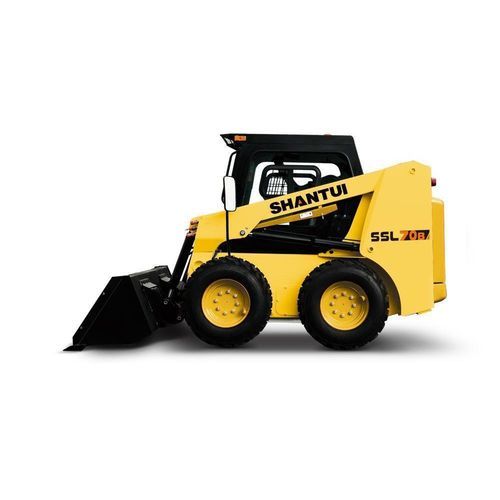

Skid steer loader SSL70B

Key features

• Engine & hydraulics: Energy-efficient engine with quick power response. Hydraulic system designed for smooth, stable performance to enable fast travel speed and high operational efficiency.
• Maintenance and operator comfort: Cab features a large-angle rear tilting design for wide maintenance access. Integrated control panel provides a clear display of machine parameters for real-time monitoring and comfortable operation.
• Adaptability: Equipped with internationally compatible quick-change attachments for fast, convenient tool changes. Compact, maneuverable design suited to a variety of construction tasks including municipal works, road maintenance, port handling and confined-space operations.

Technical parameters
Total power (kW): 45
Operating weight (kg): 2900
Bucket capacity (m³): 0.48
External dimensions (mm): 3220 x 1820 x 2000
Rated loading capacity (t): 0.85
Maximum dumping height (mm): 2260
Dumping distance (mm): /
Subtotal (s): /
Wheelbase (mm): 1050
Maximum speed (km/h): 9.5
Emissions: EU Stage II

Application examples

• Shantui equipment participating in Libya's post-war infrastructure reconstruction
• L55-B5 operating in a limestone mining project in Libya
• LE60-X5 electric loader: performance highlights in tropical applications
• Shantui wheel loader working in earthmoving conditions
• Loader for roadbed construction – East Coast Railway project, Malaysia
• Shantui loader used in a quarry in Chile

Specifications

• Product type: Skid Steer Loader
• Model: SSL70B
• Total power (kW): 45
• Operating weight (kg): 2900
• Bucket capacity (m³): 0.48
• External dimensions (mm): 3220 x 1820 x 2000
• Rated loading capacity (t): 0.85
• Maximum dumping height (mm): 2260
• Dumping distance (mm): /
• Subtotal (s): /
• Wheelbase (mm): 1050
• Maximum speed (km/h): 9.5
• Emissions: EU Stage II
