Wall hatch AT-5020
for ceilingsquaremetal

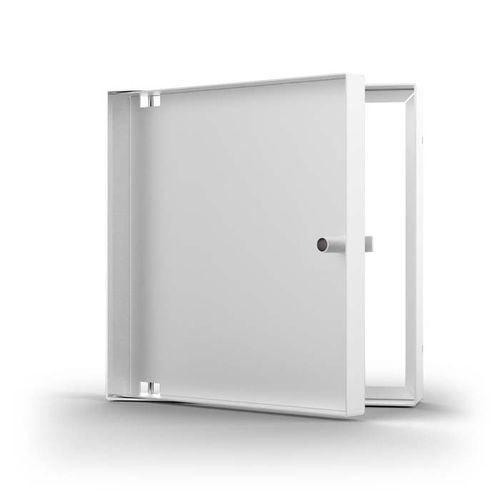

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal - image - 2

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal - image - 3

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal - image - 4

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal - image - 5

Wall hatch - AT-5020 - Acudor Products Ltd. - for ceiling / square / metal - image - 6

Add to favorites

Compare this product

Characteristics

Applications: wall, for ceiling
Shape: square
Material: metal
Other characteristics: for home automation systems
Length: 305 mm, 457 mm, 610 mm, 914 mm
(12 in, 18 in, 24 in, 36 in)
Width: 305 mm, 457 mm, 610 mm
(12 in, 18 in, 24 in)

Description

Application For flush installation in walls or ceilings when it is required to conceal the door panel Product Features Door is recessed 1" AT-5020 Access Door Specifications: Material: Steel Door: 16 gauge, Recessed 1" Mounting Frame: 14 gauge Hinge: Concealed, pivoting rod type, for wall applications over 24”x24” we supply a concealed pin hinge Standard Latch: Flush to surface, screwdriver operated cam latch Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
