Wall hatch LT-4000
for ceilingsquarealuminum

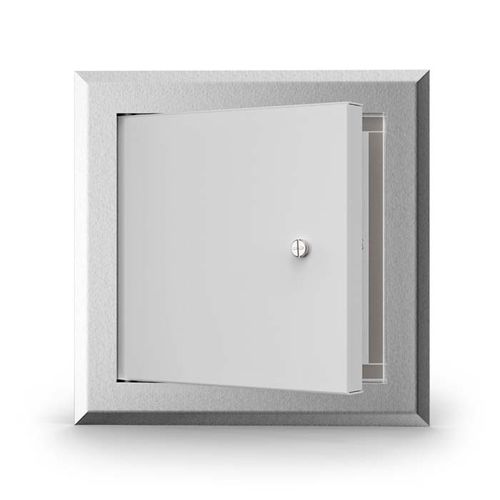

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum - image - 2

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum - image - 3

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum - image - 4

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum - image - 5

Wall hatch - LT-4000 - Acudor Products Ltd. - for ceiling / square / aluminum - image - 6

Add to favorites

Compare this product

Characteristics

Applications

wall, for ceiling

Shape

square

Material

aluminum

Other characteristics

for home automation systems

Length

Min.: 203 mm
(8 in)

Max.: 1,220 mm
(48 in)

Width

Min.: 203 mm
(8 in)

Max.: 1,830 mm
(72 in)

Description

Application Lightweight aluminum access door for walls and ceilings Product Features Mitered aluminum frame provides an architecturally pleasing appearance Aluminum door panel is lined with 3/4" polystyrene insulation All aluminum construction is ideal for exterior applications, and specific interior applications where corrosion or moisture are a concern LT-4000 Access Door Specifications: Material: Aluminum Door: .064”, flush to edge of frame, 1-5/16” mitered aluminum extrusion flange Mounting Frame: .080“, 1-1/2” deep Hinge: Doors with width 24” or less to have concealed pin hinge. Doors with width over 24” to have continuous aluminum piano hinge with exposed knuckle, set to open to 180 degrees. Insulation: 3/4” Type 3 Expanded Polystyrene (EPS) Foil Lined Insulation, with a 3.18 R Value. Gasket: 1/8” x 3/8” closed cell neoprene gasketing Standard Latch: Screwdriver operated cam latch Optional Latches/Locks: cylinder lock & key Finish: Mill finish
