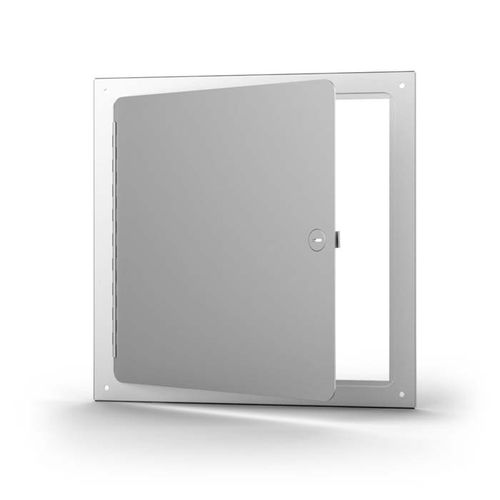

Wall hatch SF-2000for ceilingsquaremetal
Add to favorites
Compare this product
Characteristics
- Applications
- wall, for ceiling
- Shape
- square
- Material
- metal
- Other characteristics
- for home automation systems
- Length
203 mm, 305 mm, 406 mm, 610 mm
(8 in, 12 in, 16 in, 24 in)- Width
203 mm, 305 mm, 406 mm, 610 mm
(8 in, 12 in, 16 in, 24 in)
Description
Application
An innovative surface mounted access door for all types of walls and ceilings
Product Features
An exposed continuous piano hinge allows the door panel to open to 175 degrees
There is no frame to extend into the wall or ceiling
Perfect for access to odd size openings
SF-2000 Access Door Specifications:
Material: Steel
Door: 16 gauge, flush to frame with rounded corners, one piece outer flange
Mounting Frame: 16 gauge, one piece outer flange
Hinge: Exposed continuous piano hinge
Standard Latch: Stainless steel screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch
Finish: 5 stage iron phosphate preparation with White alkyd baked-on enamel
Catalogs
ACUDOR Access Products Catalog
33 Pages
2021 ACUDOR CATALOG
36 Pages
