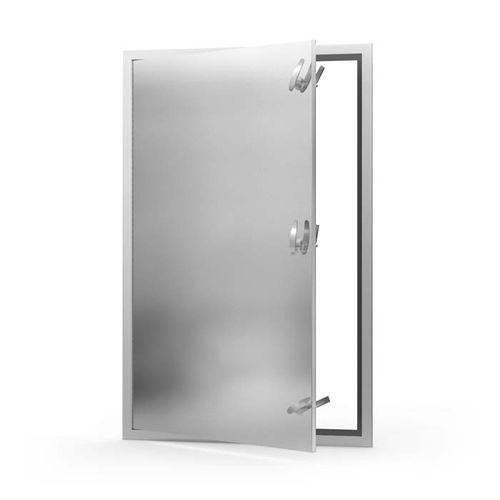

Wall hatch WD-8000rectangularaluminumstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- wall
- Shape
- rectangular
- Material
- aluminum, stainless steel
- Other characteristics
- for home automation systems
- Length
914 mm, 1,219 mm, 1,524 mm, 1,829 mm
(36 in, 48 in, 60 in, 72 in)- Width
610 mm, 762 mm
(24 in, 30 in)
Description
Application
Designed to provide convenient walk through access to duct work interiors and air handling units
Low to medium pressure systems and plenums
Product Features
Heavy duty construction, along with a continuous hinge and compression handles
Optional Features: Removable Door Panel / Vision Panel / High Pressure Units / Key Operated Handles
WD-8000 Access Door Specifications:
Door / Door Frame: 22 gauge galvanized steel, double panel frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitred corners
Hinge: Continuous steel piano hinge-opens 180o
Insulation: Door panel filled with 1” thick fibreglass insulation - 4 R value
Gasket: 1/8” thick x 1/2” wide closed cell neoprene gasketing between door and frame
Standard Latch: Dual acting compression handles-operable from both sides. Units 48” high and under to have 2 handles. Units over 48” high to have 3 handles
Finish: Mill finish
