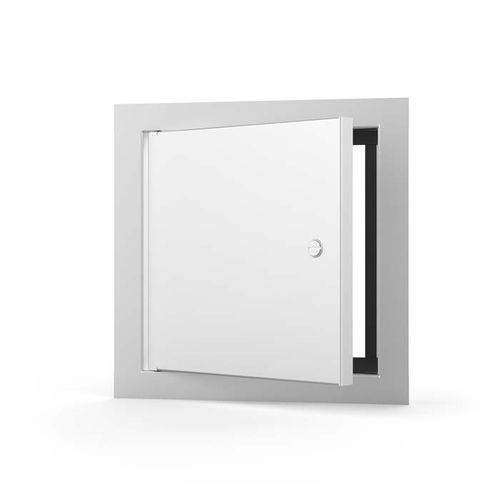

Wall hatch AS-9000for ceilingsquarestainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- wall, for ceiling
- Shape
- square
- Material
- stainless steel
- Other characteristics
- for home automation systems
- Length
305 mm, 406 mm, 457 mm, 610 mm, 914 mm
(12 in, 16 in, 18 in, 24 in, 36 in)- Width
305 mm, 406 mm, 457 mm, 610 mm
(12 in, 16 in, 18 in, 24 in)
Description
Application
• Designed to provide a gasketed fit in all types of walls and ceilings
• This door is commonly used in clean rooms, laboratories, operating rooms, etc.
Product Features
• Gasketed access door
• Formed door panel with reinforced edges and a concealed hinge, along with open cell gasket between the door and frame
AS-9000 Access Door Specifications:
Door / Door Frame: Stainless Steel or Steel: 18 gauge door, 18 gauge mounting frame, flange to be 1” wide
Hinge: Concealed
Gasket: Pemko S88 1/8” x 3/8” opened cell gasket
Standard Latch: Stainless steel screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch
Finish: Stainless steel: #4 satin polish. Steel: 5 stage iron phosphate with prime coat of White alkyd baked-on enamel
