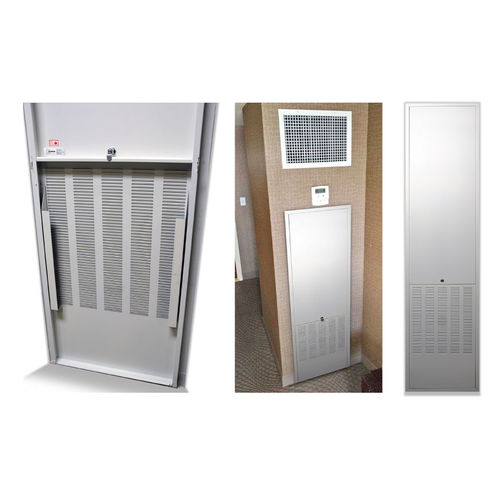

Wall access hatch VCFD

rectangularsteelthermal break

Application Provides unobstructed access and easy serviceability to Vertical Fan Coil Units in luxury Hotels, Condominiums, Apartments Product Features Corrosion resistant Satin coat steel ensures long life Architecturally pleasing appearance with flush louvers Flush mount return air panel with convenient air filter replaceability Integrated louvers assure quiet operation VCFD Access Door Specifications: Material: 18 Ga Satin Coat Steel Door: Single/Double stacked with fully removable door design. Louver punched bottom door panel with Air Filter brackets. Frame: Brake formed with reinforced mitered corners. Flanged to cover cut drywall opening. Hinge: Concealed, when applicable. Standard Lock: Concealed self locking/Stainless Steel screw driver operated cam latch/Cylinder Lock/Compression latch Optional Latches/Locks: Cylinder lock and key; allen spanner or torx head cam latch Finish: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Design Options Doors with Acoustic and Thermal insulation Tamperproof locks Drywall bead frame Custom retrofit design Seamless single-piece frame Powder Coated finish; Custom colors Custom Sizes
