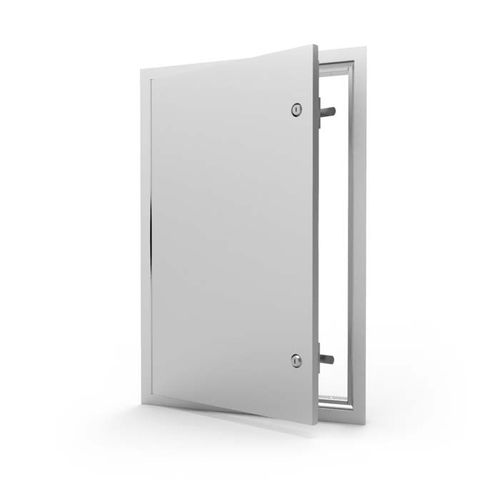

Wall hatch ACF-2064

rectangularstainless steelfor home automation systems

Application This flush access door is ideal for use on Acoustical walls where maintaining STC Rating (Sound Transmission Class) and OITC Rating (Outdoor-Indoor Transmission Class) is required Product Features Zinc coated steel provides superior corrosion resistance Type 304 Stainless steel with #4 satin polish also available Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 54 ACF-2064 Access Door Specifications: Material:18 Gauge Satin Coat Steel Door: 18 Gauge, encapsulated design with 2” thick acoustical mineral liner and 0.11” thick mineral filled vinyl barrier Frame: 18 Gauge, press bent for strength and rigidity, with 1” wide trim flanges and 1” thick acoustical mineral liner Gasket: Silicone perimeter seal gasket Hinge: Continuous exposed stainless steel piano hinge Standard Lock: Screw driver operated Compression Latch Acoustic Rating: This door has been tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 54 . Finish: 5 stage iron phosphate preparation with prime coat of white baked-on enamel
