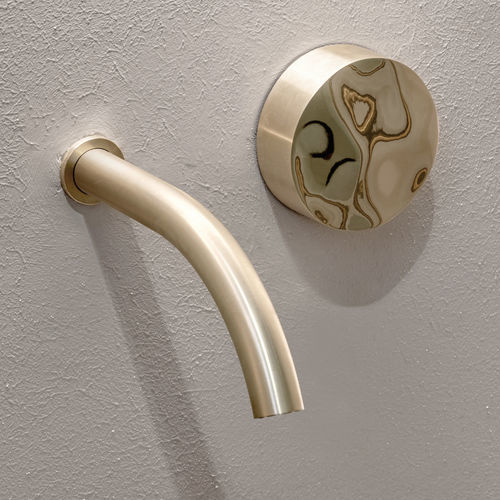

Washbasin mixer tap ALR102

built-inwall-mountedmechanical

Product description
Wall-mounted progressive mixer ALR102 with 170 mm spout. Progressive single-lever operation, requires built-in fitting. Stainless steel alloy construction. OPUS series.

Features

• Flow rate aerator 5 l/min (1.3 gpm) — water saving
• Built-in part required
• Auxiliary bracket for plasterboard / fiber-board structures
• Spout length: 170 mm
• Dimensional drawing available (SVG)

Finishes

• S | Satin with polished detail

Alloy with a reduced carbon content, widely recognised for hygienic characteristics and excellent corrosion resistance, suitable for outdoor use. Stainless steel does not oxidise or rust in contact with water and air; its natural protective film ensures long-term resistance and restorability. CEA products are manufactured using mechanical processes that preserve the alloy's ecological and hygienic properties. CEA stainless steel is not chrome plated or galvanically treated, keeping it ecological and recyclable.

Special finishes

• KD | Black Diamond
• Z | Bronze
• P | Copper
• X | Light Gold

Special finishes are produced on request by depositing mixtures of zirconium powder and graphite via vacuum evaporation (plasma). These treatments increase surface resistance to cleaning agents and salty air, improve scratch resistance and, in Black Diamond, reduce limescale deposits due to self-lubricating properties. All special finishes are ecological and biocompatible. Colour and tone variations are a natural result of the finishing process and are not manufacturing defects.

Key article code
Model | Item | Colour | Wood essence | Special finish | Finish
ZIQ | 02 | / | / | X | L
GIO | 25 | W | N | KD | S

S and L finishes
S satin finish
L polished finish

Examples
ZIQ 02 X L
Model: ZIQQ | Article: 02 | Special finish: X (Light Gold) | Finish: L (polished)

GIO 25 W N KD S
Model: GIOTTO | Article: 25 | Silicone rubber colour: W (White) | Wood essence: N (Canaletto Walnut) | Special finish: KD (Black Diamond) | Finish: S (satin)

Technical specifications

• Product type: Wall-mounted progressive mixer
• Spout length: 170 mm
• Aerator flow rate: 5 l/min (1.3 gpm)
• Water saving: yes (flow rate aerator)
• Built-in part: required
• Auxiliary bracket: available for plasterboard / fiber-board structures
• Material: Stainless steel alloy (ecological, recyclable, not chrome plated)
• Available finishes: S (Satin with polished detail)
• Special finishes: KD (Black Diamond), Z (Bronze), P (Copper), X (Light Gold)
• Series: OPUS
• Dimensional drawing: available (SVG)
