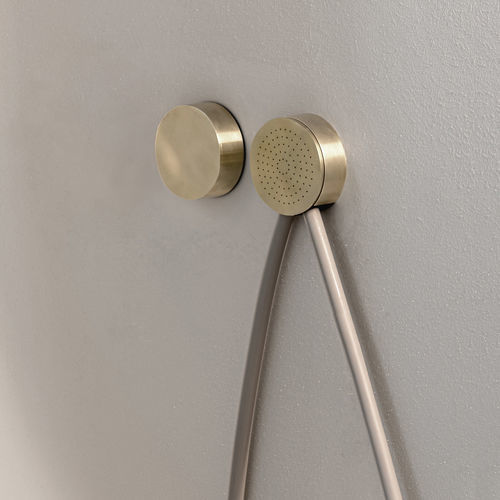

Stainless steel bathtub mixer set ALR115

wall-mountedcontemporary2-hole

Product
Wall-mounted progressive mixer set for bathtub/shower with round hand shower Ø 80 mm

Features

• Requires built-in valve body
• Auxiliary bracket for plasterboard/fibre-board structures

Documents
Dimensional drawing available (SVG format)

Available finishes

• S | Satin with polished detail

Material and treatment
Stainless steel alloy with reduced carbon content, selected for hygiene and corrosion resistance. The natural passive film prevents oxidation and ensures long-term restorability. Products are manufactured using mechanical processes without chrome plating or galvanic treatments to preserve ecological, recyclable and hygienic properties.

Special finishes

• KD | Black Diamond
• Z | Bronze
• P | Copper
• X | Light Gold

Special finishes description
Special finishes are applied on request by depositing zirconium and graphite powders via vacuum evaporation (plasma), creating harder, anti-scratch surfaces. Black Diamond provides improved protection against limescale and offers self-lubricating characteristics. Special finishes are ecological and biocompatible; colour and shade variations are inherent to the process and not manufacturing defects.

Hoses

• W | White — RAL 9016
• AB | Air force blue — RAL 5014
• B | Cobalt blue — RAL 5013
• G | Anthracite grey — RAL 7043
• DB | Quartz grey — RAL 7006
• SG | Silk grey — RAL 7044
• BK | Black — RAL 9004
• A | Aqua green — RAL 6027
• PG | Petroleum green — RAL 5020

Hose material
Silicone rubber hoses: lightweight, flexible, highly hygienic and resistant to chemicals and limescale. Temperature resistance from -55 °C to +200 °C. Typically used for hand-showers as an alternative to steel braided hoses.

Key article code (table)
ZIQ — 02 — / — / — X — L
GIO — 25 — W — N — KD — S

Legend
S = satin finish
L = polished finish

Examples
ZIQ 02 X L — Model: ZIQQ — Article: 02 — Special finish: X (Light Gold) — Finish: L (polished)
GIO 25 W N KD S — Model: GIOTTO — Article: 25 — Silicone hose colour: W (White) — Wood essence: N (Canaletto Walnut) — Special finish: KD (Black Diamond) — Finish: S (satin)

Technical specifications

• Model: ALR115
• Denomination: Wall-mounted progressive mixer set for bathtub/shower
• Hand shower diameter: 80 mm
• Mounting: Wall-mounted
• Requires built-in part: Yes
• Auxiliary bracket for plasterboard/fibre-board: Yes
• Material: Stainless steel alloy (no chrome plating/galvanic process)
• Available standard finish: S (Satin with polished detail)
• Special finishes: KD (Black Diamond), Z (Bronze), P (Copper), X (Light Gold)
• Silicone hose colours available with RAL codes: W, AB, B, G, DB, SG, BK, A, PG
• Dimensional drawing: available (SVG)
