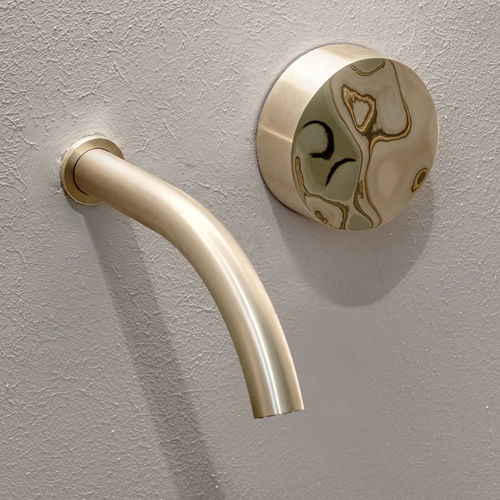

Double-handle washbasin mixer tap ALR02

built-inwall-mountedmechanical

Description
Wall-mounted mixer with double control and 170 mm spout.

Features

• Aerator flow 5 l/min (1.3 gpm) — water saving
• Requires built-in housing
• Auxiliary bracket for plasterboard / gypsum board

Documents
Dimensional (SVG file)

Available finishes
S | Satin with polished detail

Material
Low-carbon alloy stainless steel, widely recognised for hygienic properties and excellent corrosion resistance; suitable for outdoor environments. The stainless steel used is not chrome-plated or galvanically treated, is eco-friendly, fully recyclable and highly hygienic. CEA products are manufactured using mechanical processes that preserve the material characteristics.

Special finishes

• KD | Black Diamond
• Z | Bronze
• P | Copper
• X | Light Gold

Special finish treatments are applied on customer request by depositing high-thickness mixtures of zirconium and graphite powders via evaporation in sealed (plasma) chambers. These treatments increase resistance to detergents, saline air and scratches; the Black Diamond version also offers improved self-cleaning against limescale deposits. Color variations or shading are inherent to the process and not production defects.

Article code legend
Model | Article | Colour | Wood essence | Special finish | Finish
ZIQ | 02 | / | / | X | L
GIO | 25 | W | N | KD | S

Technical specifications

• Model: ALR02
• Type: Wall-mounted mixer
• Control: Double control
• Spout length: 170 mm
• Aerator flow: 5 l/min (1.3 gpm)
• Requires built-in housing
• Accessory: Auxiliary bracket for plasterboard / gypsum board
• Material: Stainless steel (low-carbon alloy), non-chromed, recyclable and hygienic
• Finishes: S (satin with polished detail), L (polished)
• Special finishes on request: KD (Black Diamond), Z (Bronze), P (Copper), X (Light Gold)
