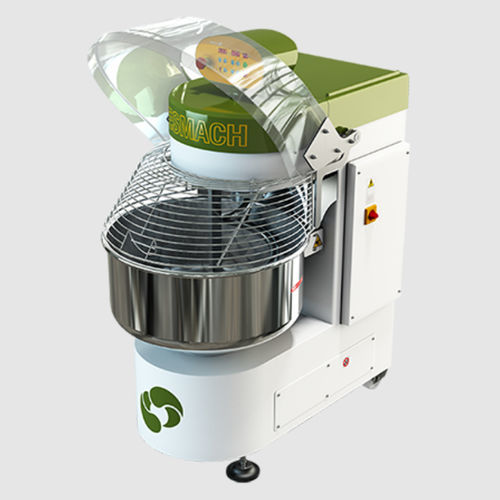

Spiral mixer SPI F
for pastry shopsfor bakerieswith spiral hook

spiral mixer
spiral mixer
spiral mixer
Add to favorites
Compare this product


Characteristics

Type
spiral
Applications
for pastry shops, for bakeries
Default tool
with spiral hook
Bowl characteristics
fixed bowl
Tool characteristics
liftable head
Protection
with metal protection grid
Other characteristics
commercial
Electric powered
400V three-phase
Installation
floor-standing
Capacity

Max.: 430 l
(114 gal)

Min.: 50 l
(13 gal)

Capacity (kg)

Max.: 300 kg
(661 lb)

Min.: 30 kg
(66 lb)

Tool speed

Max.: 214 rpm
(1,345 rad.min-1)

Min.: 97 rpm
(609 rad.min-1)

Bowl speed

Max.: 20 rpm
(126 rad.min-1)

Min.: 8 rpm
(50 rad.min-1)

Power

Max.: 11.8 kW
(16.04 hp)

Min.: 1.5 kW
(2.04 hp)

Machine width

477 mm, 565 mm, 588 mm, 735 mm
(19 in, 22 in, 23 in, 29 in)

Machine depth

Max.: 1,640 mm
(65 in)

Min.: 978 mm
(39 in)

Machine height

Max.: 1,719 mm
(68 in)

Min.: 1,378 mm
(54 in)

Machine weight

Max.: 850 kg
(1,874 lb)

Min.: 218 kg
(481 lb)

Description

Our new SPI range of spiral mixers is the outcome of our culture and know-how in quality processing of all kinds of dough kneading for bakeries, pizzerias and confectionery industries as well as our meticulous research in product technology. Balanced ratio between bowl and arm rotation for correct dough mixing and soft, delicate dough treatment. The arm is geometrically perfect so it follows the bowl walls, and the excellent bowl-arm-shaft size combination gives regular, soft and refined dough even with minimum quantities. Perfect spiral and bowl speed for extraordinary management of the dough and its development through lengthening and pulling, which means continual, constant processing. The results are reduced working hours and controlled dough heating. The electronic version of the machine can be equipped with Lid+Grid, a stainless steel grid covered by a lid. The two covers, one above the other, are completely independent. The upper “LID” is clear, the lower “GRID” is made of stainless steel. The LID can be opened after two minutes of mixing. The control panel includes a functional and innovative control console, that can be rotated left and right through 120° so that the work position is always perfect, even in small laboratories. The electronic version has a membrane keyboard, which can be used to program and control the work cycle both manually and automatically. Saves up to 9 recipes. In the “AI” version the mixer presents an elegant touch panel without roughness, easy to clean. Thanks to the multiple possibilities of connection, WiFi, LAN, Bluetooth, no more problems with technical assistance and online diagnostics.
