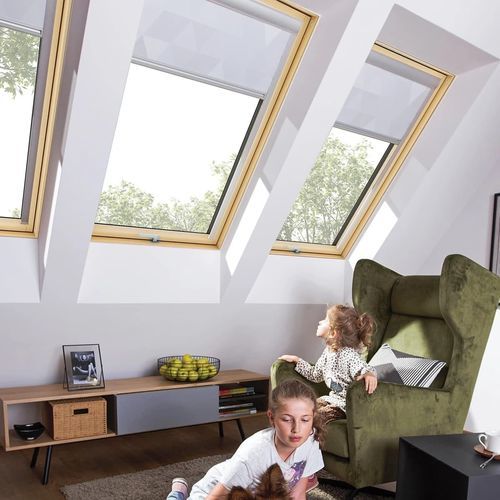

Aluminum roof window FTP-V U41 APMX

pinewood-aluminumpivoting

Overview
The FTP-V U41 APMX is a pivot roof window engineered for natural daylight, controlled ventilation and safe external cleaning. The sash rotates 180° and locks in the rotated position to allow maintenance of the outer pane. Ergonomic bottom handle and precision guiding ensure smooth operation and secure closing — suitable for contemporary architectural roof applications.

Thermal and acoustic performance

• Glazing unit: U41 44 mm triple-glazed unit with two low-emission coatings, argon-filled cavities and warm TGI spacer.
• ThermoPro technology: improves thermal insulation to reduce heat loss in winter and limit overheating in summer.
• Uw coefficient: 1.1 W/m²K (standard installation); 1.0 W/m²K with dedicated EHV-AT Thermo flashing.
• Acoustic insulation: sound reduction index Rw = 36 dB.

Construction, finish and durability

• Interior finish: vacuum-impregnated pinewood with clear acrylic varnish to reveal natural wood grain.
• Exterior cladding: aluminium in anthracite (RAL 7016) for a minimalist appearance.
• External toughened glass: impact-resistant outer pane with lifetime hail warranty.
• Sustainable materials: FSC-certified wood and water-based coatings used in production.

Comfort, safety and usability

• Pivot opening with mid-height hinge for ventilation and safe cleaning.
• 180° rotation: sash locks in rotated position for external pane cleaning (locking bolt feature).
• Handle: ergonomic bottom-position handle (GREENVIEW SILVER on standard configuration); micro-opening for controlled ventilation.
• Automatic air inlet: regulates incoming air by wind strength to balance ventilation and noise.
• topSafe system: reinforced construction to increase resistance to break-in attempts and accidental opening.

Additional functional features

• Four sealing levels (4 seals) to enhance airtightness and reduce thermal bridges.
• Airtightness class: Class 4 (air permeability).
• Impact resistance: Class 3 (450 mm).
• Watertightness: Class 9A.

Notes
The U41 44 mm glazing combined with ThermoPro technology and correct installation (use of EHV-AT Thermo flashing) delivers the declared thermal performance. The product is supplied with natural pine interior finish and anthracite aluminium external cladding as standard.

caractéristiques / spécifications techniques

• Commercial size (W × H): 48x78 cm
• Window frame clear opening width: 388 mm
• Window frame clear opening height: 686 mm
• Window sash clear opening width: 299 mm
• Window sash clear opening height: 591 mm
• Window reveal clear opening width: 425 mm
• Window reveal clear opening height: 719 mm
• Opening angle for cleaning: 180°
• Glazing unit: U41 (44 mm) — two low-e coatings, argon-filled cavities, warm TGI spacer
• Thermal transmittance coefficient Uw: 1.1 W/m²K (standard); 1.0 W/m²K with EHV-AT Thermo flashing
• Sound reduction index Rw: 36 dB
• Sound reduction indices: Ra1 = 34 dB; Ra2 = 30 dB
• Number of seals: 4
• ThermoPro: ThermoPro technology included
• Airtightness class (air permeability): Class 4
• Safety level: topSafe
• Impact resistance: Class 3 — 450 mm
• Watertightness: 9A
• Construction type / opening method: Pivot (manual control)
• Control system: Manual
• Solar power supply: No
• Internal finish: Vacuum impregnated pinewood, clear acrylic varnish
• External cladding colour: Anthracite RAL 7016
• Cladding material: Aluminium
• Window colour (interior): Natural wood pine
• Handle model: GREENVIEW SILVER
• Number of handles: 1 (two handles for wider models >98 cm)
• Air inlet: Yes (automatic)
• Installation depth: J, N, V
• Roof pitch (min.–max.): 15° - 90°
• Product weight: 22 kg
• Package width: 0.5 m
• Package length: 0.85 m
• Package height: 0.165 m
