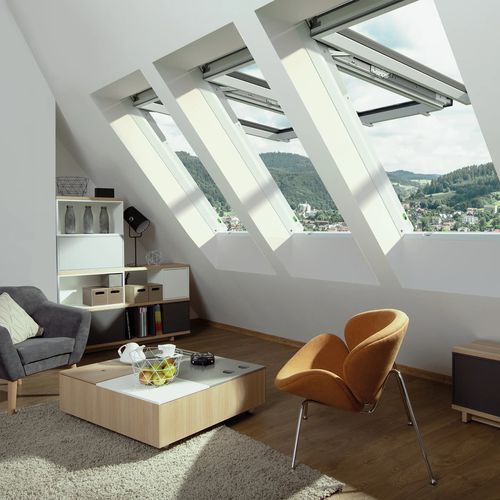

Aluminum roof window PPP-X MAX P50 ABMX

uPVCtop-hungpivoting

Product overview
The modern roof window from the GREENVIEW line designed for functionality and user comfort. The PPP-X MAX P50 ABMX model combines two independent opening methods — top-hung and pivot — for controlled access to daylight and ventilation. The top-hung mode allows the sash to open up to 45° for viewing and effective air exchange. The pivot mode enables safe external-glass cleaning without roof access. A bottom-mounted handle provides two micro-opening positions for everyday ventilation.

Acoustic and thermal comfort
The 44 mm P50 triple-glazed unit with thermoPro technology delivers improved thermal insulation year-round. Thermal transmittance: Uw = 1.0 W/m²K in standard installation and Uw = 0.9 W/m²K with EHV-AT Thermo flashing. Flexible seals ensure weather tightness and reduce thermal bridging when installed correctly. Sound insulation Rw = 40 dB (acoustic film + laminated pane) reduces external noise and improves indoor acoustic comfort.

Aesthetics and durability
The frame is made from multi-chamber uPVC profiles in white (internal RAL 9010) resistant to moisture and deformation. V-PERFECT technology ensures neat corner joints. External aluminium cladding in anthracite (RAL 7016) provides weather resistance and aligns with roof finishes. The outer glass features an easy-to-clean coating that reduces dirt adhesion and aids rain cleaning.

Key features

• Opening method: top-hung and pivot (preSelect® switch to change modes)
• Glazing unit: P50 triple-glazed unit (44 mm) with toughened outer pane, laminated inner pane (P2A), argon fill and acoustic film
• Thermal transmittance: Uw = 1.0 W/m²K (standard) / Uw = 0.9 W/m²K (with EHV-AT Thermo flashing)
• Sound reduction index: Rw = 40 dB
• Easy-to-clean coating on outer glass
• Designed for rooms with increased humidity (kitchens, bathrooms)
• preSelect® switch for quick change between top-hung and pivot modes
• Locking bolt for securing sash in 180° cleaning position
• Handle with two micro-opening positions; two handles on larger models for easier operation
• topSafe system: reinforced construction to increase resistance to break-in attempts
• thermoPro technology to support improved thermal performance
• External cladding: aluminium, anthracite (RAL 7016)
• Internal finish: PVC white (RAL 9010), corners finished with V-PERFECT

Usage notes
Flashing is required for correct roof window installation. The listed thermal and acoustic values apply to the selected size and to installations using original installation accessories. Actual performance depends on installation quality, building standard and usage conditions.

Technical specifications

• Commercial size (W × H): 55 × 98 cm
• Window frame clear opening width: 462 mm
• Window frame clear opening height: 891 mm
• Window sash clear opening width: 369 mm
• Window sash clear opening height: 791 mm
• Window reveal clear opening width: 495 mm
• Window reveal clear opening height: 919 mm
• Opening angle for cleaning: 180°
• Construction type: tilt-turn (top-hung & pivot functionality)
• Number of seals: 4
• Glazing unit thickness: 44 mm (P50)
• Glass: toughened outer pane; laminated inner pane P2A; acoustic film; easy-to-clean coating
• Thermal transmittance coefficient Uw: 1 W/m²K (standard size 55x98); 0.9 W/m²K with EHV-AT Thermo flashing
• Airtightness class (air permeability): Class 4
• Safety level: topSafe
• Wind load resistance: Class C4 / B4
• Impact resistance: Class 3 - 450 mm
• Watertightness: 9A
• Sound reduction index Rw: 40 dB (Ra1 = 39 dB; Ra2 = 35 dB)
• Material: multi-chamber uPVC profile (internal), aluminium external cladding
• Window colour (internal): PVC white
• Cladding colour (external): Anthracite RAL 7016
• Handle model: GREENVIEW WHITE handle
• Control system: Manual
• Solar power supply: No
• Installation depth options: J, N, V
• Installation location: rafters or battens
• Roof pitch min.–max.: 15° – 55°
• Product weight (selected size): 42 kg
• Package dimensions (W × L × H): width 0.57 m, length 1.05 m, height 0.165 m
• Number of products per pallet: 10 pcs
