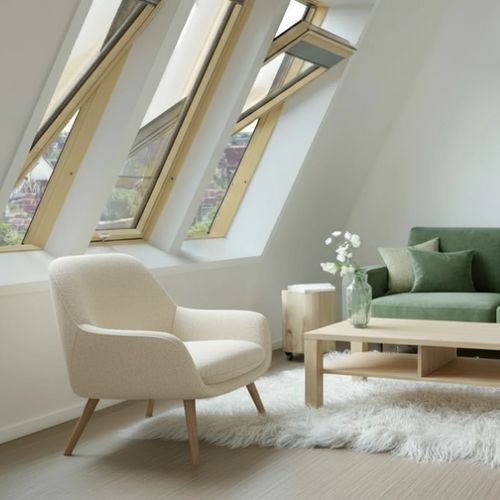

Aluminum roof window FYP-V P50 APMX

pinewood-aluminumpivoting with offset axis

Overview
The raised axis of rotation improves ergonomic access and operation. The sash lifts higher than traditional models, providing easier access to the edge and unobstructed outside views. The pivot mechanism with guided sash operates smoothly; the sash can rotate up to 160° and be locked to enable safe cleaning of the outer pane.

Key features

• Glazing unit P50: 44 mm triple-glazed unit (toughened outer pane, laminated inner pane P2A, argon, acoustic film)
• Thermal performance: Uw = 1.0 W/m²K (standard installation); Uw = 0.9 W/m²K with EHV-AT Thermo flashing
• Very good acoustic insulation: Rw = 38 dB (with acoustic film and laminated inner pane)
• Comfortable access and opening angle; sash rotates up to 160° and can be locked for safe cleaning
• Automatic air inlet for controlled ventilation and to limit wind gusts and noise
• thermoPro technology for improved thermal behaviour
• topSafe security system and reinforced construction
• Interior: vacuum-impregnated pinewood with clear acrylic varnish; exterior: aluminium cladding in anthracite (RAL 7016)
• 44 mm glazing composition: toughened outer pane, laminated inner pane (P2A), argon fill and acoustic film; easy-to-clean coating

Details
The P50 44 mm triple-glazed unit is designed for high thermal and acoustic insulation. The combination of toughened outer pane, laminated inner pane, argon fill and an additional acoustic film reduces external noise and increases user safety. An easy-to-clean coating prolongs the appearance of the outer pane. thermoPro technology and installation with EHV-AT Thermo flashing further improve thermal performance.

Aesthetics and durability
Interior surfaces in vacuum-impregnated pinewood with clear acrylic varnish expose the natural wood grain for an elegant interior finish. Aluminium external cladding in anthracite (RAL 7016) reinforces a minimalist aesthetic and ensures weather resistance. The product uses FSC-certified wood and water-based lacquers for durable, environmentally considerate finishes.

Technical specifications

• Commercial size (W × H): 55 × 140 cm
• Frame clear opening width: 458 mm
• Frame clear opening height: 1306 mm
• Sash clear opening width: 369 mm
• Sash clear opening height: 1211 mm
• Reveal clear opening width: 495 mm
• Reveal clear opening height: 1339 mm
• Opening angle for cleaning: 180° (sash locks for safe cleaning)
• Glazing unit: P50 — 44 mm triple-glazed unit (toughened outer pane, laminated inner pane P2A, argon, acoustic film)
• Thermal transmittance Uw: 1.0 W/m²K (standard installation), 0.9 W/m²K with EHV-AT Thermo flashing
• Number of seals: 4
• Airtightness (air permeability): Class 4
• Sound reduction index Rw: 38 dB; Ra1: 37 dB; Ra2: 34 dB
• Safety level: topSafe system
• Wind load resistance: Class C4 / B4
• Impact resistance: Class 3 (450 mm)
• Watertightness: 9A
• Construction type: Pivot window with raised axis of rotation
• Opening method: Pivot
• Control system: Manual
• Automatic air inlet: Yes (automatic adjustment to wind strength to limit gusts and noise)
• Solar power supply: No
• Window material (interior): Vacuum-impregnated pinewood
• External cladding: Aluminium, anthracite (RAL 7016)
• Lacquer: natural finish, 2 coats
• Handle: GREENVIEW SILVER, 1 piece (two handles used on wider models)
• Product weight: 37.5 kg
• Package width: 0.57 m
• Package length: 1.47 m
• Package height: 0.17 m
• Packaging method: Tied with transportation belts
