Aluminium balcony window FOP-V P50 APMX

pinewood-aluminumtop-hung

Short description

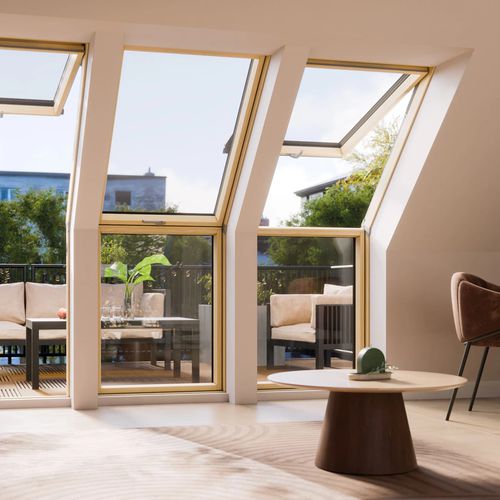

The FOP‑V P50 APMX is a terrace window combining two independent opening modes: top-hung (up to 45°) and pivot. Designed to provide outward viewing, effective ventilation and safe external-glass cleaning without stepping onto the roof. The sash handle offers two micro-ventilation positions. Profiled to match the lower element of a terrace window set to create full access to a terrace or balcony.

Key points

• Upper element of a terrace window set
• P50 glazing unit (44 mm triple glazing) — Uw = 1.1 W/m²K with EHV-AT Thermo flashing
• Two opening modes: top-hung and pivot (preSelect® switch)
• Automatic air inlet for continuous fresh-air supply
• Easy-to-clean outer glass coating
• Interior: natural pine with clear acrylic varnish; exterior: aluminium cladding (anthracite RAL 7016)

Features (details)

• Glazing: 44 mm P50 triple-glazed unit with toughened outer pane, P2A laminated inner pane, argon fill and acoustic film.
• ThermoPro technology for improved thermal performance when used with Thermo flashing.
• preSelect® switch on frame side to switch quickly between top-hung and pivot modes.
• Bottom sash handle with two micro-ventilation positions; models wider than 98 cm use two handles.
• Automatic air inlet adapts airflow to wind strength to limit gusts and noise.
• topSafe reinforced construction to increase resistance to break-in attempts and accidental opening.
• Easy-to-clean outer coating that helps breakdown and wash away dirt by sunlight and rain.
• Materials: vacuum-impregnated pine interior; aluminium external cladding; clear acrylic varnish, two lacquer coats.
• Environment: manufactured from FSC-certified wood and finished with water-based coatings.

Dimensions (selected size 78x140)
Commercial size (W × H) - 78x140 cm
Frame clear opening width × height - 688 mm × 1306 mm
Sash clear opening width × height - 599 mm × 1211 mm
Reveal clear opening width × height - 725 mm × 1339 mm

Material & appearance

• Window colour: Natural pine
• Cladding colour: Anthracite RAL 7016
• Interior material: Vacuum-impregnated pinewood
• Cladding material: Aluminium
• Internal finish: Clear acrylic varnish
• Number of lacquer coats: 2

Thermal and acoustic performance

• Uw = 1.1 W/m²K for the complete window with EHV-AT Thermo flashing
• 44 mm P50 glazing with argon and acoustic film for high thermal insulation and improved sound reduction
• Four seals to improve airtightness and reduce thermal bridging

Safety & resistance

• Toughened outer pane with hail-resistance warranty (subject to terms)
• P2A laminated inner pane for increased safety
• topSafe security system (reinforced construction)
• Airtightness class: 3
• Wind load resistance: Class C3
• Watertightness: 9A

Opening & control

• Opening modes: Top-hung (ventilation, outward view) and pivot (cleaning)
• preSelect® switch to change modes without opening the sash
• Control: Manual
• Automatic air inlet: Yes (adjusts to wind strength)
• Solar power supply: No

Installation & transport

• Installation location: Rafters or battens
• Installation depth: V (as specified)
• Product weight (78x140): 70 kg
• Package dimensions: W 0.8 m × L 1.47 m × H 0.165 m
• Packaging: tied with transportation belts
• Items per pallet: 7 pcs

Notes

• A lower element (FOR, FOL or FOX) is required to create a full terrace access configuration.

Technical specifications

• Model: FOP‑V P50 APMX
• Range: GREENVIEW terrace windows
• Selected commercial size (W×H): 78x140 cm
• Frame clear opening W×H: 688 mm × 1306 mm
• Sash clear opening W×H: 599 mm × 1211 mm
• Reveal clear opening W×H: 725 mm × 1339 mm
• Glazing: P50 44 mm triple-glazed unit; toughened outer pane; P2A laminated inner pane; argon; acoustic film; easy-to-clean coating
• Thermal performance: Uw = 1.1 W/m²K (with EHV-AT Thermo flashing)
• Seals: 4
• ThermoPro technology: yes
• Airtightness class: 3
• Wind load resistance: Class C3
• Watertightness: 9A
• Security: topSafe system
• Handle: 1 pcs (bottom sash); two handles for widths >98 cm
• Air inlet: automatic
• Control: Manual
• Interior material: Vacuum-impregnated pinewood, clear acrylic varnish
• Cladding: Aluminium, anthracite RAL 7016
• Number of lacquer coats: 2
• Product weight (78x140): 70 kg
• Packaging: tied with transportation belts; package W×L×H approx. 0.8 m × 1.47 m × 0.165 m
• Items per pallet: 7 pcs
