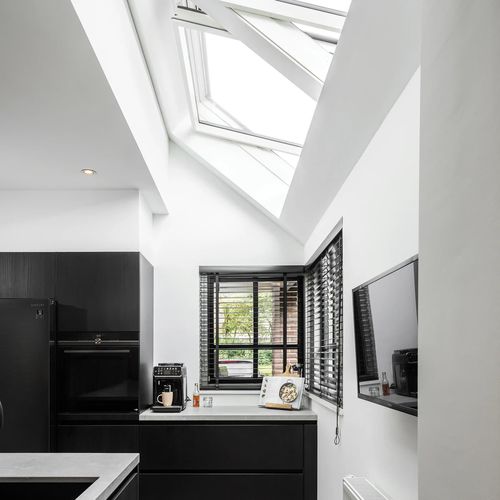

Aluminum roof window FTU-X P50 AUWX

pinewood-aluminumpivoting

Overview
The FTU-X P50 AUWX is a mid-hinge pivot roof window designed for ventilation and external-glass cleaning. The sash rotates 180° and can be locked in the cleaning position. The unit integrates an electric actuator with an extendable chain arm and a rain sensor. Remote control via WiFi is supported and the window can be integrated with the Tuya Smart app for smartphone, wall-switch or smart-home scenario control. Solar power supply is supported (Electric Solar).

Key functional highlights

• Pivot opening with 180° sash rotation and locking for external-glass cleaning
• Electric actuator with 24 cm reach (extendable chain-type arm)
• WiFi remote operation and Tuya Smart integration for app and smart-home scenarios
• Solar power supply supported (Electric Solar)

Energy and acoustic efficiency
The window is fitted with a 44 mm P50 triple-glazed unit combined with thermoPro technology to enhance year-round thermal performance. Typical thermal transmittance (Uw) values indicated: standard installation ≈ 1.0 W/m²K; product references also show Uw values when installed with EHV-AT Thermo flashing (examples cited: 0.9 W/m²K and 1.1 W/m²K depending on context). The glazing includes an acoustic film and a laminated inner pane to improve sound insulation (Rw up to 40 dB in described configurations).

Aesthetics and durability
The interior sash is finished with three coats of white polyurethane varnish (similar to RAL 9003) for a smooth, moisture-resistant surface suitable for kitchens and bathrooms. The exterior is protected by anthracite-coloured aluminium cladding (RAL 7016) for weather resistance and a minimalist appearance.

Glazing and glass

• 44 mm P50 triple-glazed unit with easy-clean coating
• Outer pane tempered/toughened (impact/hail resistance covered under warranty terms)
• Inner pane laminated (P2A) to enhance safety and reduce injury risk on breakage
• Acoustic film layer to improve sound insulation; easy-clean coating reduces dirt adhesion

Actuator and operation
The integrated actuator is located on the lower section and moves the sash via an extendable chain arm with 24 cm reach. Motion is smooth, quiet and precise, allowing automatic opening/closing across the full range. A rain sensor provides automatic safety closure. Remote control is available via WiFi/Tuya; remote handset is not included by default.

Safety and security

• topSafe reinforcement system increases resistance to break-in and accidental opening
• Locking bolt secures sash in fully rotated 180° position for safe external-pane cleaning

Compatibility and recommended installation
The window is designed for installation with original FAKRO accessories; use of a dedicated flashing is required for correct installation. A thermo/insulation flashing (EHV-AT Thermo) is referenced for improved Uw performance.

Technical specifications

• Model: FTU-X P50 AUWX
• Brand: FAKRO
• Commercial size (W × H): 46 × 78 cm
• Window frame clear opening width: 368 mm
• Window frame clear opening height: 686 mm
• Window sash clear opening width: 279 mm
• Window sash clear opening height: 591 mm
• Window reveal clear opening width: 405 mm
• Window reveal clear opening height: 719 mm
• Opening angle for cleaning: 180°
• Construction type: Pivot
• Window colour (interior): Pine - white (white polyurethane varnish, similar to RAL 9003)
• Window cladding colour (exterior): Anthracite RAL 7016
• Window material: Vacuum-impregnated pinewood
• Cladding material: Aluminium
• Lacquer type: Polyurethane; number of lacquer coats: 3
• Glazing: 44 mm P50 triple-glazed unit; tempered outer pane; P2A laminated inner pane; acoustic film; easy-clean coating
• ThermoPro: thermoPro technology included
• Uw (typical): standard installation ≈ 1.0 W/m²K; note: product pages reference Uw variations when used with EHV-AT Thermo flashing (examples cited: 0.9 W/m²K and 1.1 W/m²K depending on context)
• Acoustic insulation: Rw up to 40 dB (product notes)
• Number of seals: 4
• Safety level: topSafe
• Actuator reach: 24 cm (extendable chain arm)
• Control system: Electric Solar; WiFi / Tuya Smart integration for app control and smart-home scenarios
• Remote control: not included (no remote control shipped by default)
• Solar power supply: Yes
• Handle model: Klamka GREENVIEW SREBRNA
• Air inlet: Not applicable
• Increased moisture resistance: Yes
• Installation depth options: J, N, V (use appropriate original installation accessories)
• Installation location: Rafters or battens
• Product weight: 30 kg
• Package dimensions (WxLxH): 0.48 m × 0.85 m × 0.205 m
• Packaging method: Tied with transportation belts
