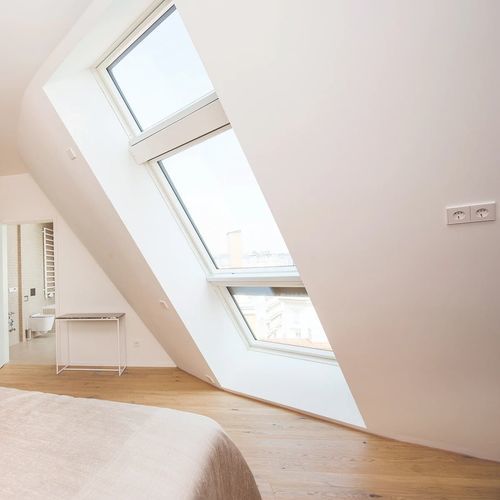

Aluminum roof window FTU-V P50 AUSX

pinewood-aluminumpivoting

Short overview
The FTU-V P50 AUSX is a pivot roof window designed to provide thermal comfort, acoustic insulation and ease of use. The sash rotates around a horizontal axis at half its height, allowing ventilation and safe cleaning when the sash is rotated 180° and locked. The product integrates an electric, Z-Wave radio-controlled actuator powered by a built-in photovoltaic panel and includes a rain sensor for automatic protection against rain.

Main functional advantages

• Pivot opening with 180° rotation and locking for safe external-glass cleaning.
• Built-in solar-powered electric actuator enabling wireless installation and automatic opening/closing.
• Z-Wave radio control compatible (remote opening via Z-Wave system).
• Integrated rain sensor for automatic closing in adverse weather.

Energy and acoustic performance
The window is fitted with the P50 triple-glazed unit and thermoPro technology to improve thermal performance. Reported thermal values for the P50 unit on the site include: Uw = 1.1 W/m²K in standard installation, Uw = 1.0 W/m²K when installed with the EHV-AT Thermo flashing. A site feature box also references Uw = 0.9 W/m²K with a dedicated EHV-AT Thermo flashing. Flexible seals and correct installation reduce heat loss and the risk of thermal bridging. Acoustic performance: sound insulation Rw = 39 dB, achieved by laminated inner pane, acoustic film and gas filling.

Glazing and safety
The 44 mm thick P50 glazing unit comprises a toughened outer pane, a P2A-class laminated inner pane, argon fill and an acoustic film. Features include hail-resistant toughened outer pane, laminated inner pane for safety and anti-intrusion resistance, easy-clean coating on the outer pane and a dedicated soundproofing film.

Aesthetics and durability
Inner sash finish: three coats of white polyurethane varnish (similar to RAL 9003) producing a smooth, moisture-resistant interior surface suitable for bathrooms and kitchens. Exterior cladding: aluminium cladding in anthracite (RAL 7016) providing a modern minimalist look and weather resistance.

Mechanics and control

• Actuator with extension arm (chain-type arm, approx. 24 cm reach) located at the bottom section of the window for smooth, quiet and stable sash movement.
• Solar photovoltaic panel powers the actuator; suitable where mains power is not available.
• Arm extends quietly and precisely to avoid jerky motion.
• Locking bolt secures the sash in the fully rotated 180° position for safe cleaning of the exterior pane.

Installation and recommended accessories
The window requires an appropriate flashing for correct installation. Selection of original flashings and installation accessories is necessary to achieve the declared thermal parameters and watertightness. Installation is possible on rafters or battens; recommended installation depths and compatible flashings are specified per configuration.

Technical specifications

• Commercial size (W × H): 55 x 60 cm
• Window frame clear opening width: 458 mm
• Window frame clear opening height: 506 mm
• Window sash clear opening width: 369 mm
• Window sash clear opening height: 411 mm
• Window reveal clear opening width: 495 mm
• Window reveal clear opening height: 539 mm
• Opening angle for cleaning: 180°
• Construction type: Pivot
• Window colour (interior): Pine - white U (white lacquer similar to RAL 9003)
• Window cladding colour (exterior): Anthracite RAL 7016
• Window material: Vacuum-impregnated pinewood
• Cladding material: Aluminium
• Lacquer type: Polyurethane; number of lacquer coats: 3
• Glazing unit: P50 triple-glazed unit (44 mm) — toughened outer pane, P2A laminated inner pane, argon fill, acoustic film
• Declared thermal performance: Uw = 1.1 W/m²K (standard installation); Uw = 1.0 W/m²K (with EHV-AT Thermo flashing). A referenced value also shows Uw = 0.9 W/m²K with dedicated EHV-AT Thermo flashing.
• Sound insulation: Rw = 39 dB
• Number of seals: 4
• Control system: Electric Solar (built-in solar power supply)
• Solar power supply: Yes
• Z-Wave remote opening: supported via built-in Z-Wave radio-controlled actuator
• Remote control (direct): No (Z-Wave integration and local wall-mounted switches / app control available)
• Actuator reach / arm: approx. 24 cm (extendable chain arm)
• Safety level / system: topSafe (reinforced construction)
• Handle model: Klamka GREENVIEW SREBRNA
• Air inlet: Yes
• Installation depth options: J, N, V
• Installation location: Rafters or battens
• Product weight: 27 kg
• Package dimensions (W × L × H): 0.57 m × 0.67 m × 0.205 m
• Packaging method: Tied with transportation belts
• Item number: 87YG31
