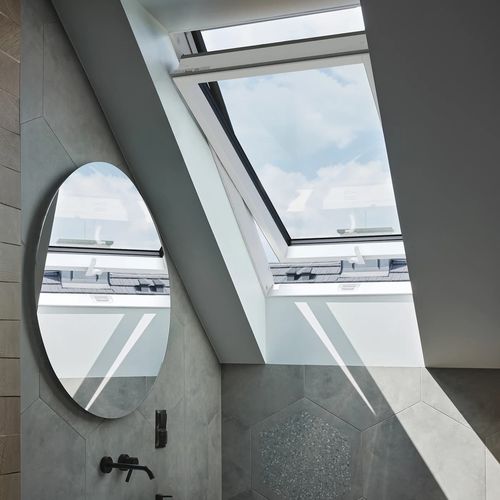

Aluminium roof window PTP-V U41 ABMX

uPVCpivotingtriple-glazed

Overview
The PTP-V U41 ABMX is a pivot roof window designed for pitched roofs, combining practical ventilation, easy cleaning and robust thermal performance. The sash operates smoothly with a mid-height hinge and an ergonomic handle. The sash rotates 180° and locks in position to enable safe external cleaning, ensuring daily comfort and user-friendly maintenance.

Energy and acoustic efficiency
The 44 mm U41 glazing unit features two low-emission coatings, argon-filled cavities and a warm TGI spacer, delivering reduced heat loss and improved summer protection. Thermal transmittance: Uw = 1.1 W/m²K in standard installation and Uw = 1.0 W/m²K with the EHV-AT Thermo flashing. Acoustic insulation: Rw = 37 dB (Ra1 = 35 dB; Ra2 = 31 dB). Flexible seals and multi-chamber profiles minimise air leakage and thermal bridging.

Aesthetics and durability
Internal white PVC finish (RAL 9003) offers high moisture resistance suitable for kitchens and bathrooms. External aluminium cladding in anthracite (RAL 7016) provides a modern architectural appearance. External toughened glass increases impact resistance and is covered by a lifetime hail warranty.

Key features

• Glazing unit U41: 44 mm triple-glazed unit with two low-E coatings, argon fill and warm TGI spacer (Uw = 1.0 W/m²K with Thermo flashing)
• High sound insulation: Rw = 37 dB
• Automatic air inlet for controlled ventilation
• Suitable for high-humidity rooms (moisture-resistant internal PVC)
• Pivot opening with 180° rotation and locking bolt for safe external cleaning
• Ergonomic handle; micro-opening function; GREENVIEW WHITE handle (1 handle for selected size)
• TopSafe reinforcement for enhanced security
• External aluminium cladding (Anthracite RAL 7016); internal PVC finish (White RAL 9003)

Applications
Pivot roof window intended for pitched roofs. Recommended for bathrooms and kitchens due to moisture-resistant internal profiles. For optimal thermal performance, install with dedicated flashing (EHV-AT Thermo recommended).

Technical specifications

• Commercial size (W × H): 46 × 78 cm (selected size)
• Frame clear opening width: 372 mm
• Frame clear opening height: 691 mm
• Sash clear opening width: 279 mm
• Sash clear opening height: 591 mm
• Reveal clear opening width: 405 mm
• Reveal clear opening height: 719 mm
• Opening angle for cleaning: 180° (sash can be rotated and locked)
• Glazing: U41 unit, 44 mm triple-glazed, two low-E coatings, argon-filled cavity, warm TGI spacer
• Thermal transmittance Uw: 1.1 W/m²K (standard); 1.0 W/m²K (with EHV-AT Thermo flashing)
• Number of seals: 4
• Airtightness (air permeability): Class 4
• Watertightness: 9A
• Wind load resistance: Class C4/B4
• Impact resistance: Class 3 (450 mm)
• Sound reduction index Rw: 37 dB (Ra1: 35 dB; Ra2: 31 dB)
• Construction type: Pivot
• Window material: multi-chamber uPVC profile
• Cladding material: aluminium
• Internal finish: PVC white (RAL 9003)
• External cladding colour: Anthracite RAL 7016
• Handle model: GREENVIEW WHITE; Number of handles: 1 (for this size)
• Automatic air inlet: Yes
• TopSafe system: included
• thermoPro technology: incorporated
• Installation depths / options: J, N, V
• Installation location: rafters or battens
• Permitted roof pitch: 15° – 90°
• Product weight (selected size): 24 kg
• Package dimensions (selected size): 0.48 m × 0.85 m × 0.165 m
